DOMINAplus Touch Screen and Web Server

Category: DOMINAplus Touch Screen and Web Server

Image	Code	Description

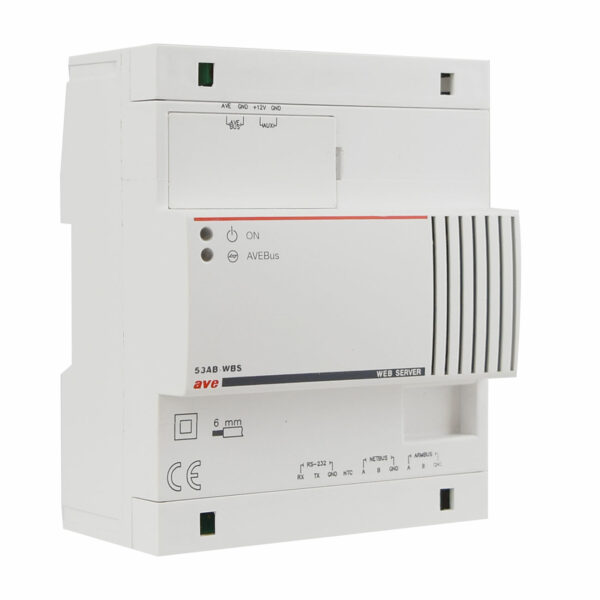

	53AB-WBS	Web server for the supervision of the home automation system using Ethernet-6 relays 6 modules DIN Power supply: 12Vdc (1A) Operating temperature range: 5oC - 30oC Connection AVEbus and LAN for other ethernet device. Made in monoblock for DIN installation	Show details

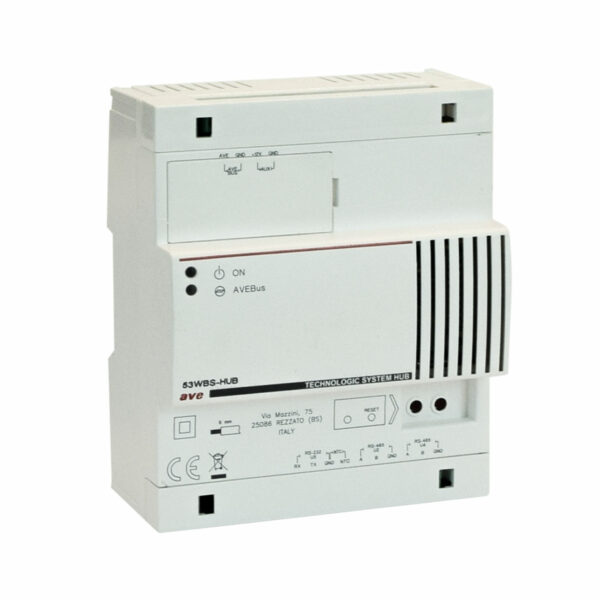

	53WBS-HUB	HUB WEBSERVER TECHNOLOGIC SYSTEMS	Show details

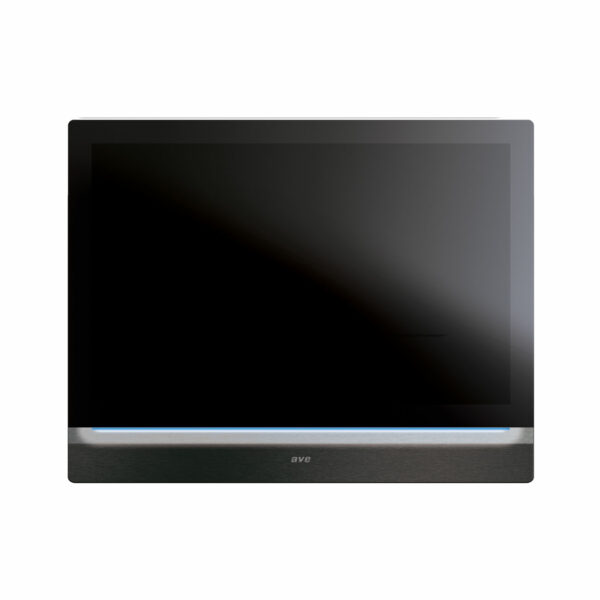

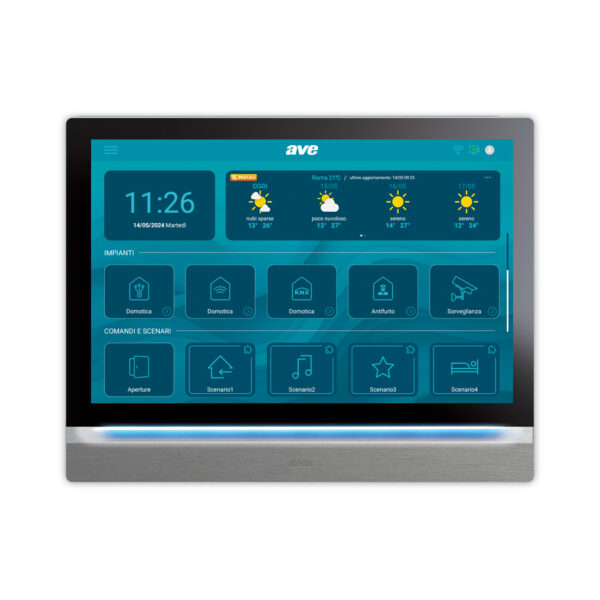

	TS-SMART10ALS	Touchscreen display 10". Structure made of glass and aluminium. Power supply via 24VDC switching or 48VDC PoE switch. Input for floor button doorbell, ring mute function, unanswered call log, image capture of incoming call. Door open alarm. 'Doctor's studio' function with input display. Fitted with LED strip for ambient light with user-selectable colours. Recessed installation in 3-module box installed horizontally using the bracket supplied with the device.Allows you to view and control: Domina SMART Home automation (via article 53AB-WBS), related civil series devices (through article 53AB-WBS), direct burglar alarm control units AF927 range, V44 SMART video intercom system, IP cameras (request a list of compatible cameras from your local technical sales),compatible with KNX protocol. The device enables remote answering of an incoming video intercom call via the AVE V44 REMOTE APP available for iOS and Android operating systems. Natural satin finish aluminium colour. Dimensions 240x187x50 mm.	Show details
	TS-SMART10ANS	DOMINA V44 SMART touch screen 10 "color graphic LCD. Power supply via 24VDC switching or 48VDC PoE switch. Input for floor button doorbell, ring mute function, unanswered call log, image capture of incoming call. Door open alarm. 'Doctor's studio' function with input display. Fitted with LED strip for ambient light with user-selectable colours. Recessed installation in 3-module box installed horizontally using the bracket supplied with the device.Allows you to view and control: Domina SMART Home automation (via article 53AB-WBS), related civil series devices (through article 53AB-WBS), direct burglar alarm control units AF927 range, V44 SMART video intercom system, IP cameras (request a list of compatible cameras from your local technical sales),compatible with KNX protocol. The device enables remote answering of an incoming video intercom call via the AVE V44 REMOTE APP available for iOS and Android operating systems. Satin burnished aluminium colour. Dimensions 240x187x50 mm.	Show details

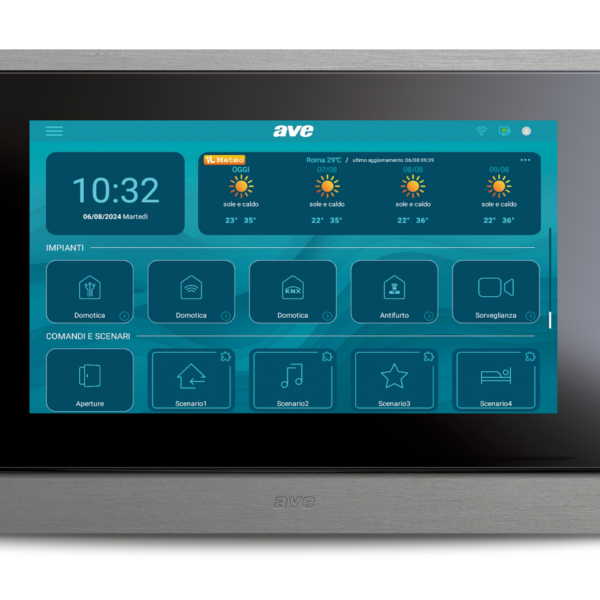

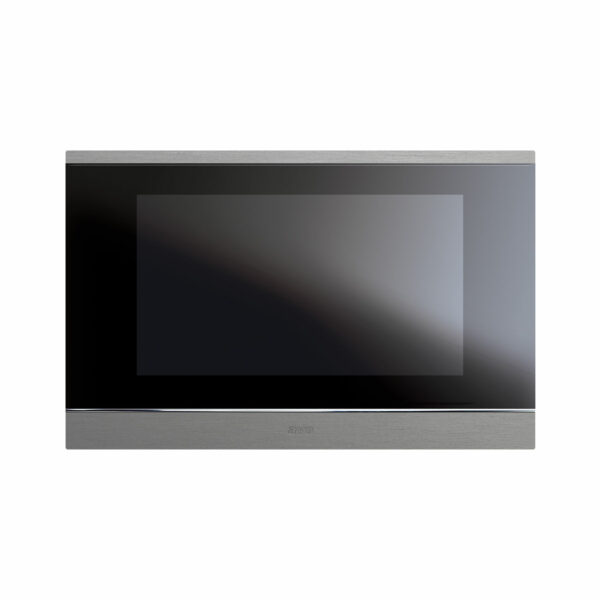

	TS-SMART7ALS	Monitor with 7' colour touchscreen display in 16:9 format. Structure made of glass and aluminium. Input for floor button doorbell, ring mute function, unanswered call log, image capture of incoming call. Door open alarm. 'Doctor's studio' function with input display. Wall-mounted installation on 3-module box installed horizontally using the bracket supplied with the device. Power supply via 24VDC switching or 48VDC PoE switch.Allows you to view and control: Domina SMART Home automation (via article 53AB-WBS), Related civil series devices (through article 53AB-WBS), Direct burglar alarm control units AF927 range, V44 SMART video intercom system, IP cameras (request a list of compatible cameras from your local technical. Natural satin finish aluminium colour. Dimensions 220x140x27 mm.	Show details

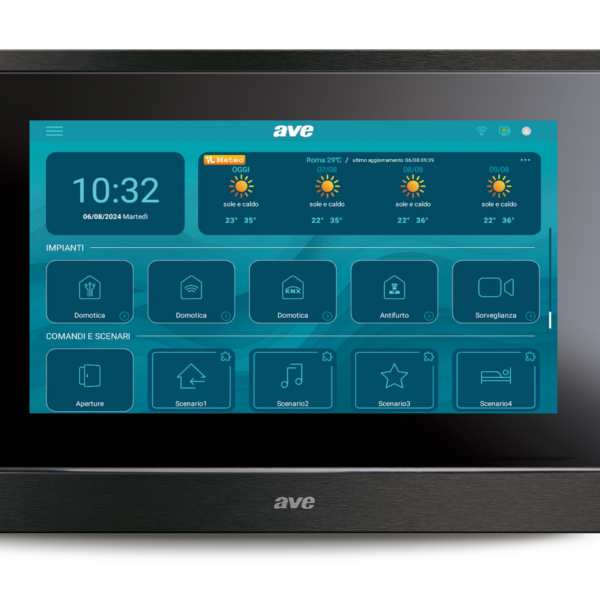

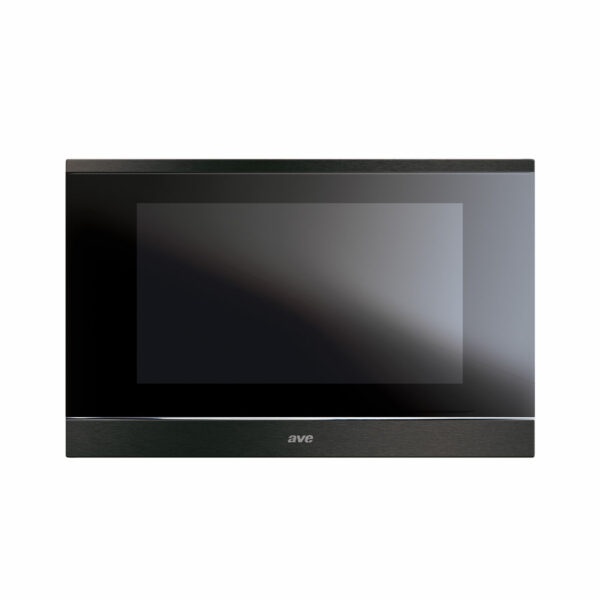

	TS-SMART7ANS	DOMINA V44 SMART touch screen with 7 "color graphic LCD. Input for floor button doorbell, ring mute function, unanswered call log, image capture of incoming call. Door open alarm. 'Doctor's studio' function with input display. Wall-mounted installation on 3-module box installed horizontally using the bracket supplied with the device. Power supply via 24VDC switching or 48VDC PoE switch.Allows you to view and control: Domina SMART Home automation (via article 53AB-WBS), Related civil series devices (through article 53AB-WBS), Direct burglar alarm control units AF927 range, V44 SMART video intercom system, IP cameras (request a list of compatible cameras from your local technical. Structure in bi-material: aluminum, brushed anthracite color and glass with black frame. Dimensions 220x140x27 mm.	Show details

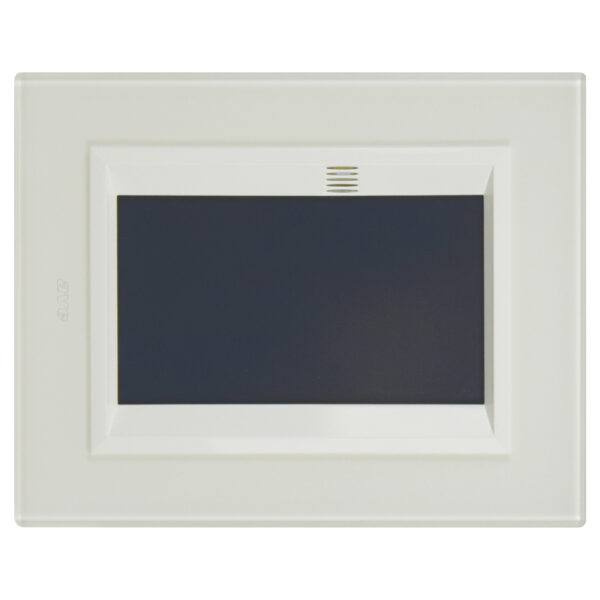

	TS01	DOMINA TOUCH SCREEN 4.3" 3+3M S44	Show details

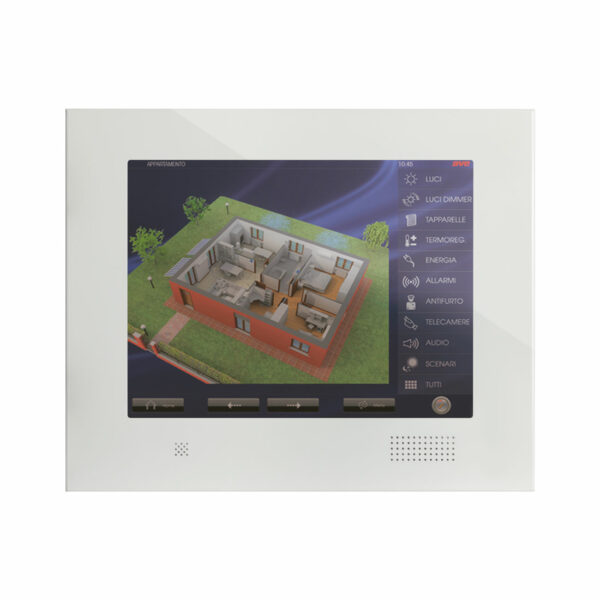

	TS04X-V	TOUCH SCREEN 12" VIDEO INTERCOM IP	Show details

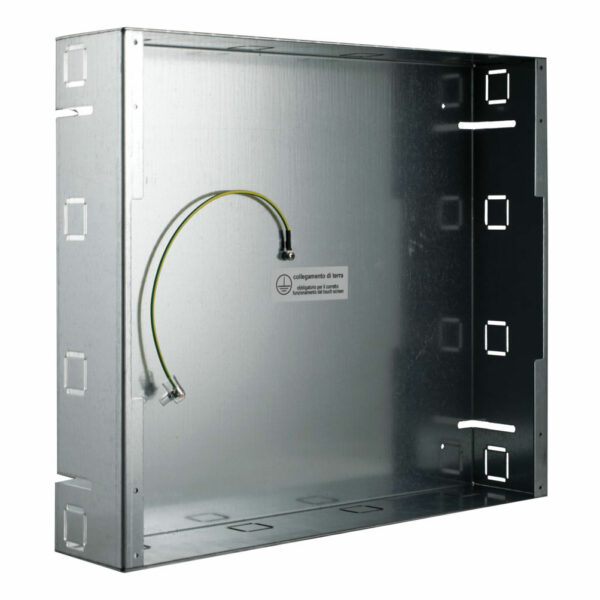

	TS04XBOX	FLUSH MOUNTED BOX FOR TS04X-V	Show details
	TS05N-V	TOUCH SCREEN 15" VIDEO INTERCOM IP	Show details
	TS05NBOX	FLUSH MOUNTED BOX FOR TS05N-V	Show details
	TSINT01	Interface for AVE touch screen. It allows to connect the anti-intrusion central unit AF998EXP to AVE touch screens.	Show details
