Video Intercom 2 WIRE V44 EASY Archivi

Video Intercom 2 WIRE V44 EASY

Category: Video Intercom 2 WIRE V44 EASY

Code	Description

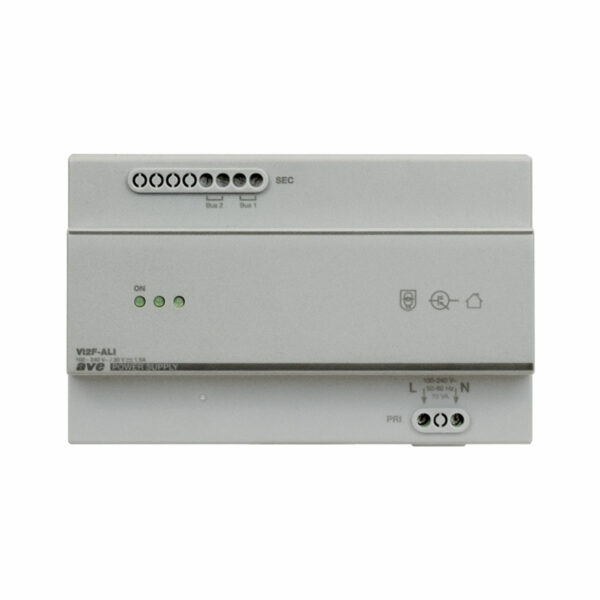

VI2F-ALI	2 WIRE TECHNOLOGY. Power supply unit for video door phone system in 8 DIN modular housing. Power supply 110 - 240 Vac@50/60 Hz. Output 30V 1.5A. Two outgoing 2-wire bus lines for system connection. The device is protected against overload and short circuit. The device does not need to be configured. V44 EASY SYSTEM.	Show details

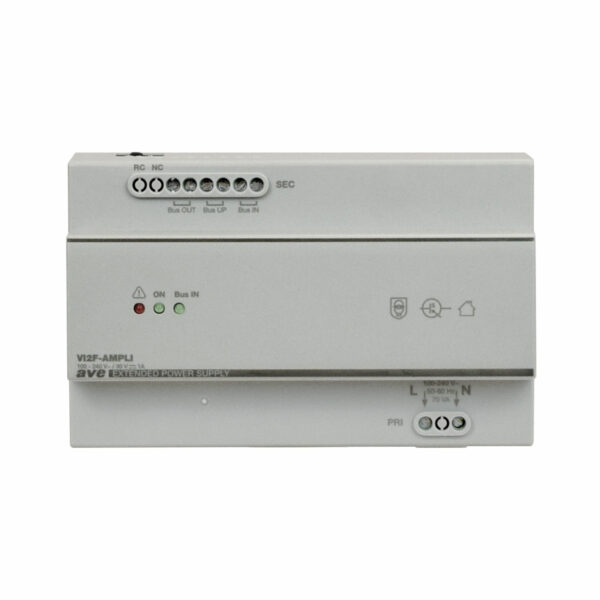

VI2F-AMPLI	2 WIRE TECHNOLOGY. Amplifier for 2 WIRE video door entry system, 8 DIN modules. Power supply 110 - 240 Vac @ 50/60 Hz. It provides a 1A output to allow the expansion of the 2-wire system. V44 EASY SYSTEM.	Show details

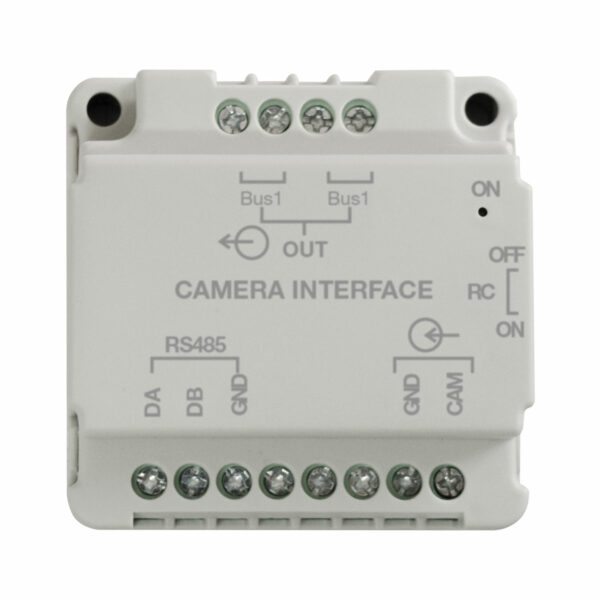

VI2F-CAM	2 WIRE TECHNOLOGY. Interface module for 1 analog camera. Dimensions (LxHxD): 55x55x24 mm. SISTEMA V44 EASY.	Show details

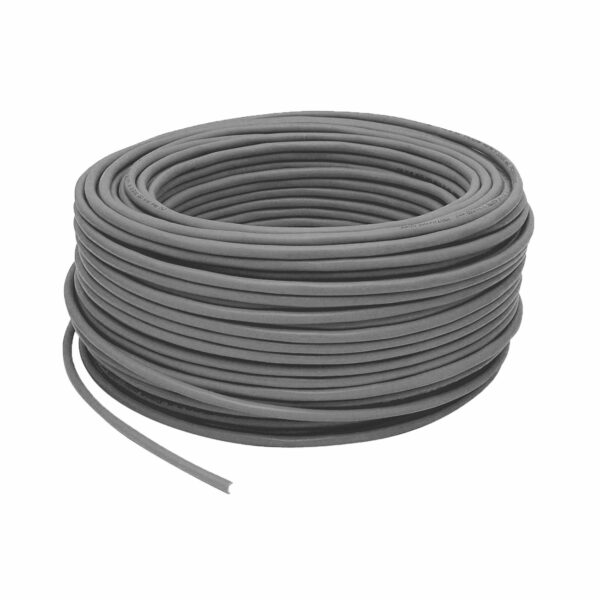

VI2F-CV	2 WIRE TECHNOLOGY. Cable for video door entry system consisting of two 0.5 mm2 twisted conductors. Outdoor installation permitted only in pipelines. Permitted temperature range: from -30 ° C to +70 ° C in fixed installation. 200 m coil. V44 EASY SYSTEM 2 WIRE.	Show details

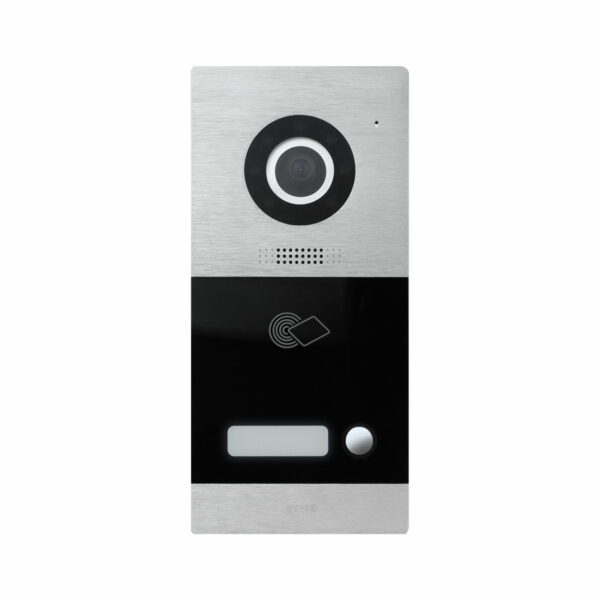

VI2F-PE1	2 WIRE TECHNOLOGY. Single-family audio-video external station mod. "Villa". Front aesthetics made of bi-material: black glass and natural brushed aluminum. Adjustable camera, 2 outputs for the management of electric locks, integrated MIFARE card reader. Name tags supplied. It can be installed externally on the wall or built-in using boxes and rain cover. Dimensions (LxHxD): 100x215x45,7 mm. V44 EASY SYSTEM.	Show details

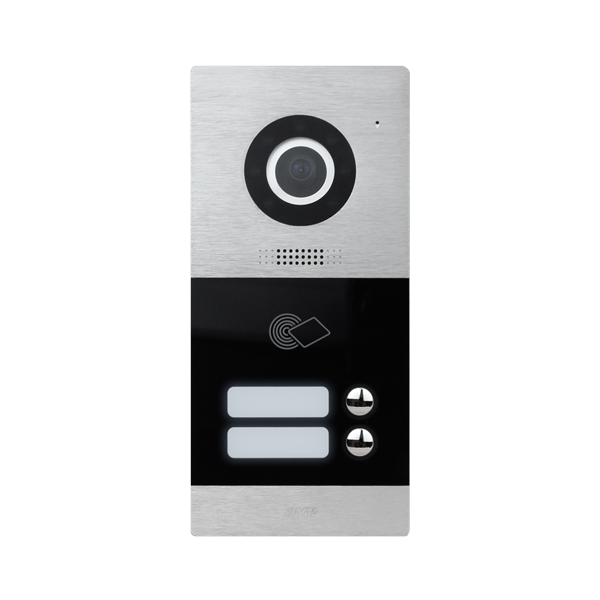

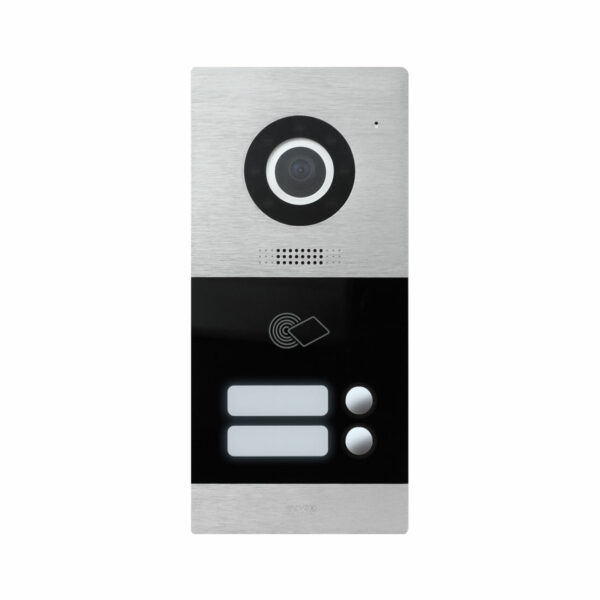

VI2F-PE2	2 WIRE TECHNOLOGY. Two-family audio-video external station mod. "Villa". Front aesthetics made of bi-material: black glass and natural brushed aluminum. Adjustable camera, 2 outputs for the management of electric locks, integrated MIFARE card reader. Name tags supplied. It can be installed externally on the wall or built-in using special boxes and rain cover. Dimensions (LxHxD): 100x215x45,7 mm. V44 EASY SYSTEM.	Show details

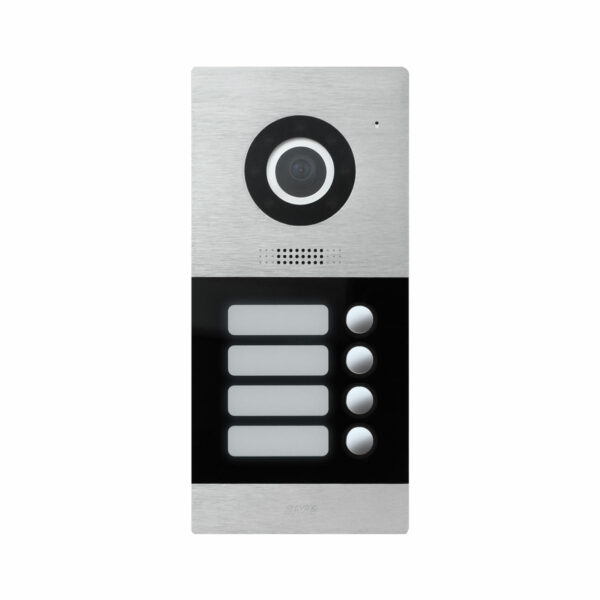

VI2F-PE4	2 WIRE TECHNOLOGY. Four-family audio-video external station mod. "Villa". Front aesthetics made of bi-material: black glass and natural brushed aluminum. Adjustable camera, 2 outputs for the management of the electric locks. Name tags supplied. It can be installed externally on the wall or built-in using special boxes and rain cover. Dimensions (LxHxD): 100x215x45,7 mm. V44 EASY SYSTEM.	Show details

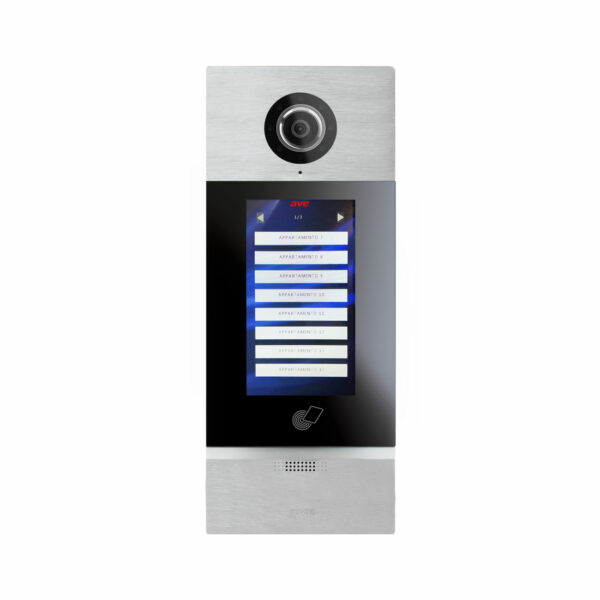

VI2F-PE7T	2 WIRE TECHNOLOGY. Multi-system audio-video external station mod. "Building". Front aesthetics made of bi-material: black glass and natural brushed aluminum. 7 "color touch screen display, adjustable camera, 2 outputs for the management of electric locks, integrated MIFARE card reader. Can be installed on the wall or built-in using special boxes and rain cover. Dimensions (LxHxD): 148,5x369x49 mm. V44 EASY SYSTEM.	Show details

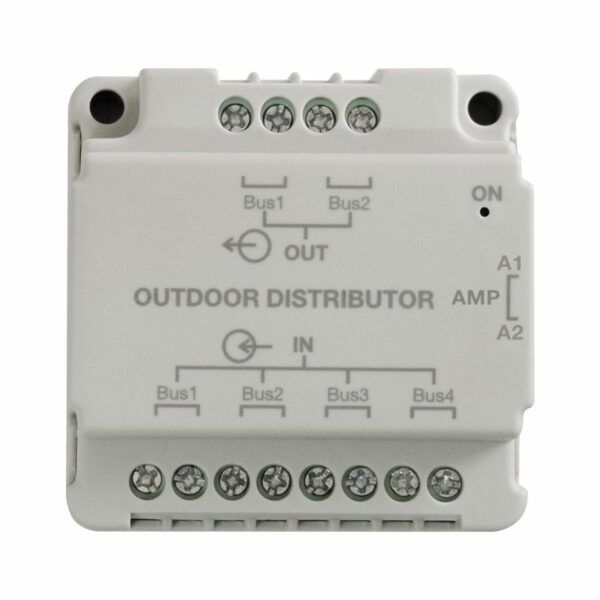

VI2F-PEDIST	2 WIRE TECHNOLOGY. Module for distributing the audio/video signal on external stations (max.3) and/or interfacing VI2F-CAM modules. Dimensions (LxHxD): 55x55x24 mm. SISTEMA V44 EASY.	Show details

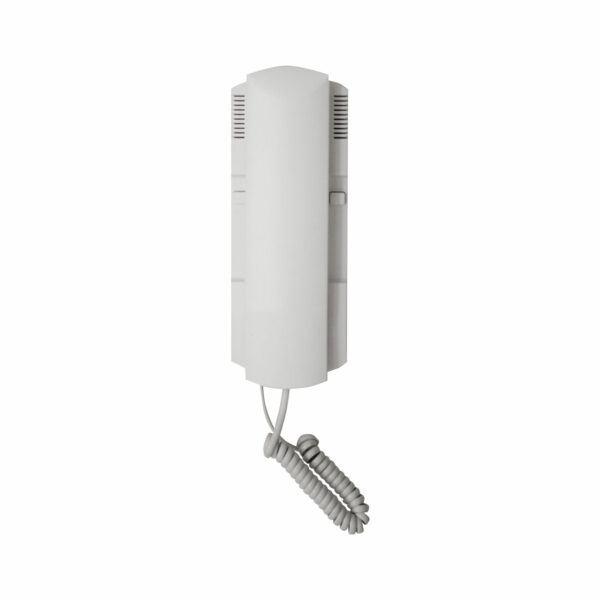

VI2F-PICAB	2 WIRE TECHNOLOGY. Intercom handset. It is equipped with a door release button and call volume adjustment. Dimensions (LxHxD): 78x210x50 mm. V44 EASY SYSTEM.	Show details

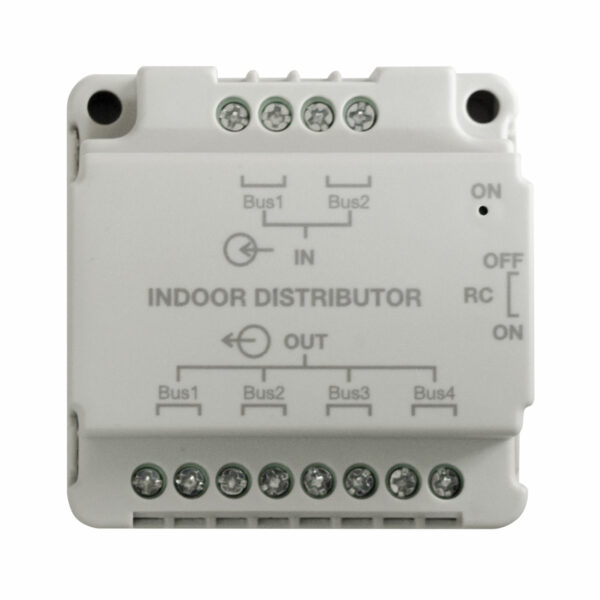

VI2F-PIDIST	2 WIRE TECHNOLOGY. Module for distributing the audio/video signal to 4 internal stations. Dimensions (LxHxD): 55x55x24 mm. SISTEMA V44 EASY.	Show details

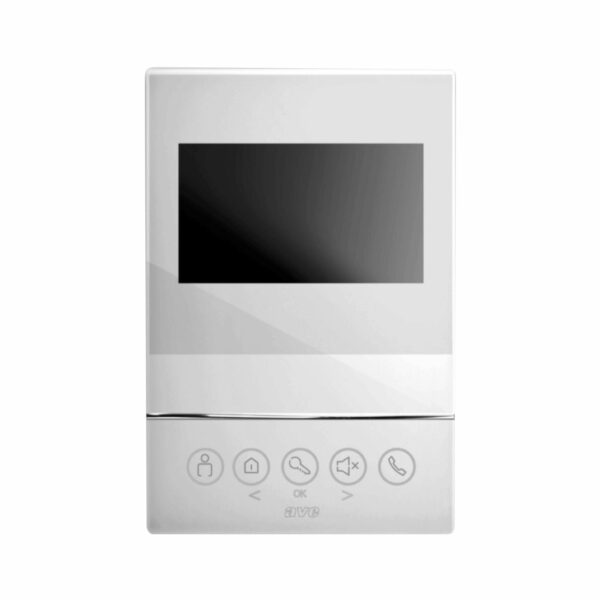

VI2F-PIT4B	2 WIRE TECHNOLOGY. Internal monitor with 4.3" lcd display. White color. The device is equipped with soft-touch buttons for managing calls and opening the electric locks. Silencing button to exclude the ringer Dimensions (LxHxD): 120x180x25 mm. V44 EASY SYSTEM.	Show details

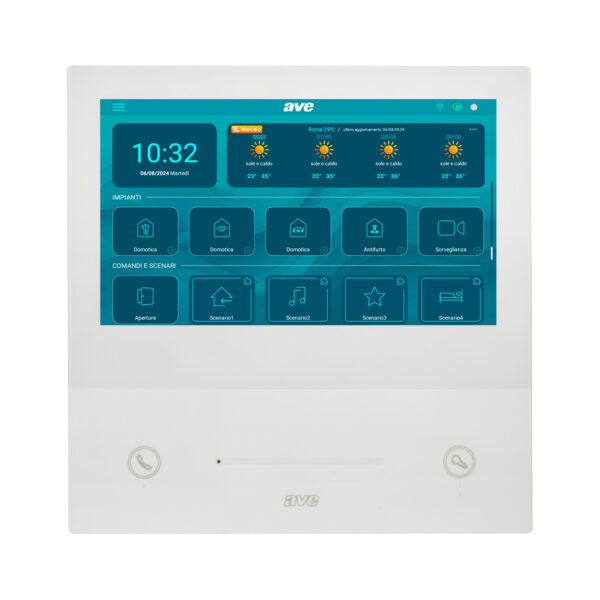

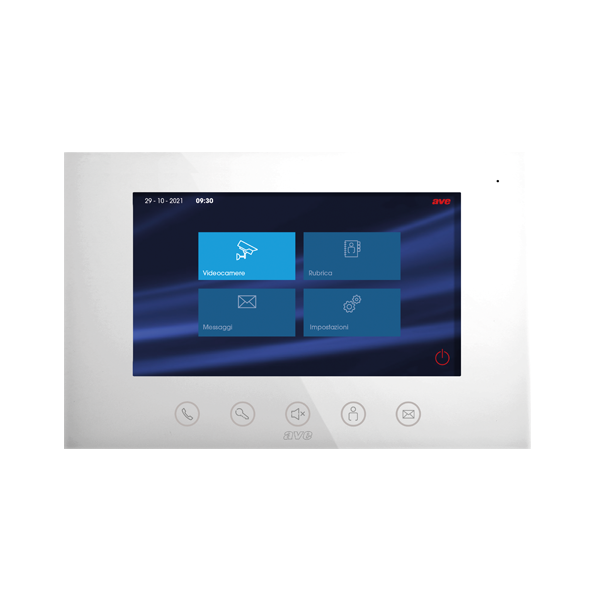

VI2F-PIT7B	2 WIRE TECHNOLOGY. Indoor monitor with 7 " touch screen lcd display. White color. The device is also equipped with soft-touch buttons for managing calls and opening electric locks." Doctor's office function for automatic opening of the main electric lock. Capture of the frame when a call arrives and the possibility of recording a video on an SD card (not supplied). Mute button to exclude the ringer. Direct power supply from 2-wire bus or via 30V auxiliary power supply VI2F-ALI600MA. Dimensions (LxHxD): 220x140x28 mm. V44 EASY SYSTEM.	Show details

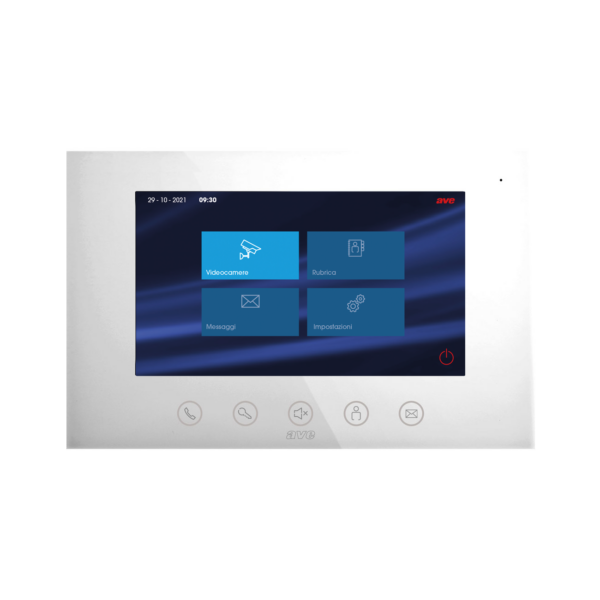

VI2F-PIT7WF	Touch screen with 7 "color graphic LCD for the V44 EASY system, white color. Direct power supply from 2-wire bus or via 30V auxiliary power supply VI2F-ALI600MA. Visualization of analog cameras by means of art. VI2F-CAM (not supplied). WI-FI network card for connection to the home router. Wall-mounted installation on a 3-module box installed horizontally using the special bracket supplied. Dimensions (LxHxP): 179x179x25 mm.	Show details

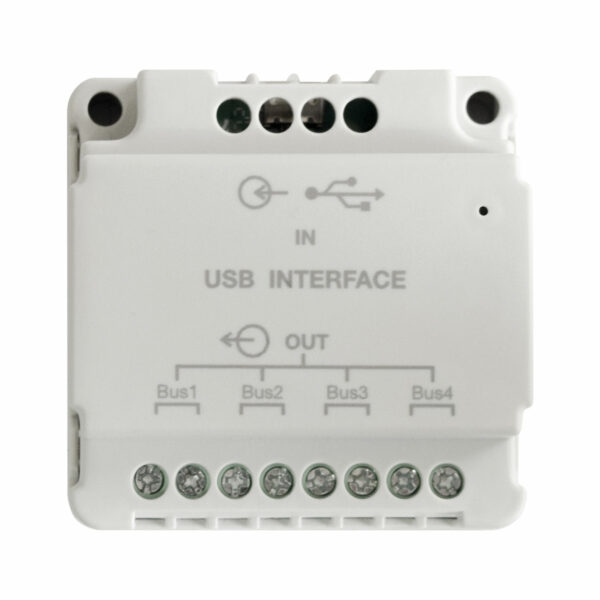

VI2F-PROG	2 WIRE TECHNOLOGY. Configuration card for Building outdoor station VI2F-PE7T with touch screen display. The interface allows the connection of a PC to the external station for the management of the user list configuration file. Dimensions (LxHxD): 55x55x24 mm. SISTEMA V44 EASY.	Show details

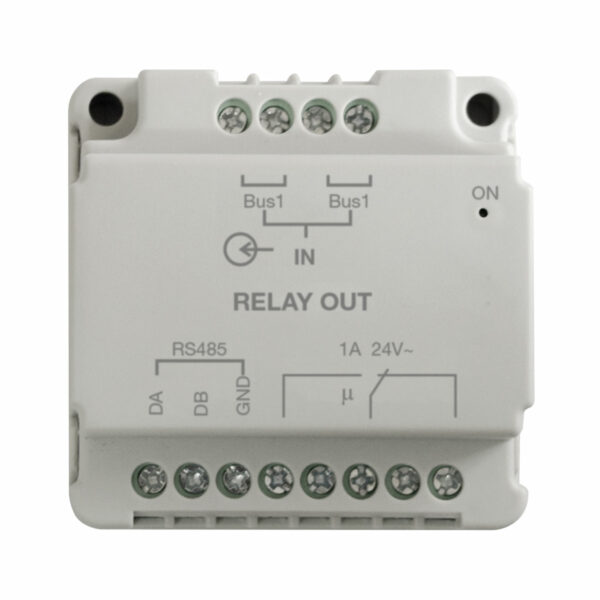

VI2F-RELAY	2 WIRE TECHNOLOGY. Relay module for the management of an additional electric lock in addition to the two managed directly from the external stations. Dimensions (LxHxD): 55x55x24 mm. SISTEMA V44 EASY.	Show details
