Video Intercom IP V44 SMART

Category: Video Intercom IP V44 SMART

Image	Code	Description
	TS-SMART10-ADT	Adapter plate for the installation of art. TS-SMART10XX in box BL06	Show details

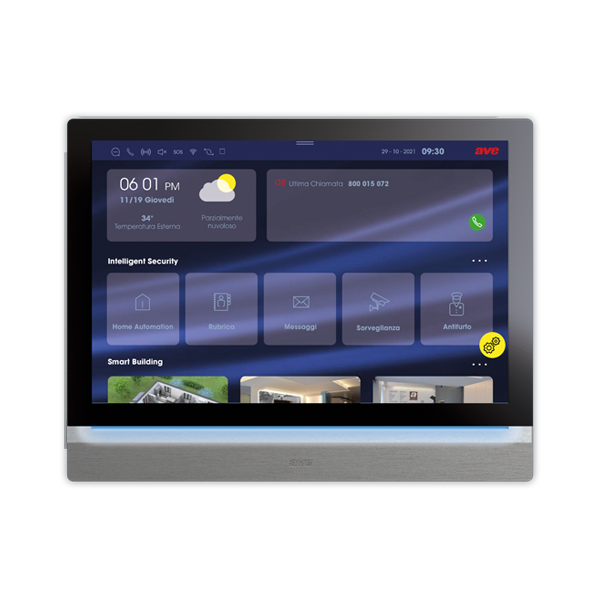

	TS-SMART10ALS	Touchscreen display 10". Structure made of glass and aluminium. Power supply via 24VDC switching or 48VDC PoE switch. Input for floor button doorbell, ring mute function, unanswered call log, image capture of incoming call. Door open alarm. 'Doctor's studio' function with input display. Fitted with LED strip for ambient light with user-selectable colours. Recessed installation in 3-module box installed horizontally using the bracket supplied with the device.Allows you to view and control: Domina SMART Home automation (via article 53AB-WBS), related civil series devices (through article 53AB-WBS), direct burglar alarm control units AF927 range, V44 SMART video intercom system, IP cameras (request a list of compatible cameras from your local technical sales),compatible with KNX protocol. The device enables remote answering of an incoming video intercom call via the AVE V44 REMOTE APP available for iOS and Android operating systems. Natural satin finish aluminium colour. Dimensions 240x187x50 mm.	Show details
	TS-SMART10ANS	DOMINA V44 SMART touch screen 10 "color graphic LCD. Power supply via 24VDC switching or 48VDC PoE switch. Input for floor button doorbell, ring mute function, unanswered call log, image capture of incoming call. Door open alarm. 'Doctor's studio' function with input display. Fitted with LED strip for ambient light with user-selectable colours. Recessed installation in 3-module box installed horizontally using the bracket supplied with the device.Allows you to view and control: Domina SMART Home automation (via article 53AB-WBS), related civil series devices (through article 53AB-WBS), direct burglar alarm control units AF927 range, V44 SMART video intercom system, IP cameras (request a list of compatible cameras from your local technical sales),compatible with KNX protocol. The device enables remote answering of an incoming video intercom call via the AVE V44 REMOTE APP available for iOS and Android operating systems. Satin burnished aluminium colour. Dimensions 240x187x50 mm.	Show details
	TS-SMART7ALS	Monitor with 7' colour touchscreen display in 16:9 format. Structure made of glass and aluminium. Input for floor button doorbell, ring mute function, unanswered call log, image capture of incoming call. Door open alarm. 'Doctor's studio' function with input display. Wall-mounted installation on 3-module box installed horizontally using the bracket supplied with the device. Power supply via 24VDC switching or 48VDC PoE switch.Allows you to view and control: Domina SMART Home automation (via article 53AB-WBS), Related civil series devices (through article 53AB-WBS), Direct burglar alarm control units AF927 range, V44 SMART video intercom system, IP cameras (request a list of compatible cameras from your local technical. Natural satin finish aluminium colour. Dimensions 220x140x27 mm.	Show details
	TS-SMART7ANS	DOMINA V44 SMART touch screen with 7 "color graphic LCD. Input for floor button doorbell, ring mute function, unanswered call log, image capture of incoming call. Door open alarm. 'Doctor's studio' function with input display. Wall-mounted installation on 3-module box installed horizontally using the bracket supplied with the device. Power supply via 24VDC switching or 48VDC PoE switch.Allows you to view and control: Domina SMART Home automation (via article 53AB-WBS), Related civil series devices (through article 53AB-WBS), Direct burglar alarm control units AF927 range, V44 SMART video intercom system, IP cameras (request a list of compatible cameras from your local technical. Structure in bi-material: aluminum, brushed anthracite color and glass with black frame. Dimensions 220x140x27 mm.	Show details
	VIIP-PE1	IP TECHNOLOGY. Single-family audio-video external station mod. "Villa". Front aesthetics made of bi-material: black glass and natural brushed aluminum. Adjustable camera, 2 outputs for the management of electric locks, integrated MIFARE card reader. Name tags supplied. It can be installed externally on the wall or built-in using special boxes and rain cover. Dimensions (LxHxD): 100x215x45,7 mm. V44 SMART SYSTEM.	Show details
	VIIP-PE2	IP TECHNOLOGY. Two-family audio-video external station mod. "Villa". Front aesthetics made of bi-material: black glass and natural brushed aluminum. Adjustable camera, 2 outputs for the management of electric locks, integrated MIFARE card reader. Name tags supplied. It can be installed externally on the wall or built-in using special boxes and rain cover. Dimensions (LxHxD): 100x215x45,7 mm. V44 SMART SYSTEM.	Show details
	VIIP-PE4	IP TECHNOLOGY. Four-family audio-video external station mod. "Villa". Front aesthetics made of bi-material: black glass and natural brushed aluminum. Adjustable camera, 2 outputs for the management of the electric locks. Name tags supplied. It can be installed externally on the wall or built-in using special boxes and rain cover. Dimensions (LxHxD): 100x215x45,7 mm. V44 SMART SYSTEM.	Show details

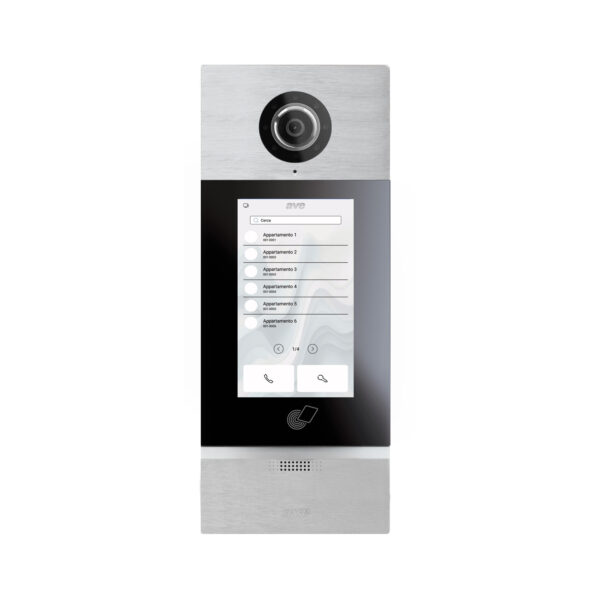

	VIIP-PE7T	IP TECHNOLOGY. Multi-system audio-video external station mod. "Building". Front aesthetics made of bi-material: black glass and natural brushed aluminum. 7 "color touch screen display, adjustable camera, 2 outputs for the management of electric locks, integrated MIFARE card reader. Can be installed on the wall or built-in using special boxes and rain cover. Dimensions (LxHxD): 148,5x369x49 mm. V44 SMART SYSTEM.	Show details
	VIIP-PICAB	IP TECHNOLOGY. Intercom handset. It is equipped with a door release button and call volume adjustment. Dimensions (LxHxP): 78x210x50 mm. V44 SMART SYSTEM.	Show details
	VIIP-PIT4B	IP TECHNOLOGY. Internal monitor with 4.3 "white display. The device is equipped with soft-touch buttons for managing calls and opening the electric locks. Silencing button to exclude the ringer. Dimensions (LxHxD): 120x180x25 mm. V44 SMART SYSTEM.	Show details

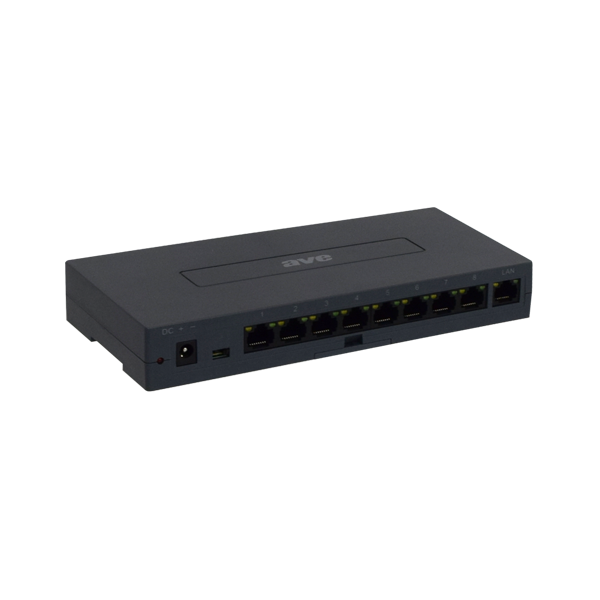

	VIIP-SPOE	8-port PoE switch 10/100/1000 Mbps for V44 SMART IP range. It can be used to power the TS-SMART7xx and TS-SMART10xx home automation supervisors and external IP video intercom stations. The device is equipped with 2 UP LINK ports and SFP port. Dimensions (LxHxD): 200x46x120 mm	Show details
