| Code EAN13: | 8008379101733 |
|---|---|
| Standard packing: | 1,00 |
| Minimum packaging: | 100,00 |
| Code EAN13 min.pck.: | 8008379236701 |
| Length min.pck.: | 300,00 |
| Width min.pck.: | 350,00 |
| Height min.pck.: | 400,00 |
| Volume min.pck.: | 42,00 |
| Weight min.pck.: | 1860,00 |
| Quantity min. order: | 100,00 |

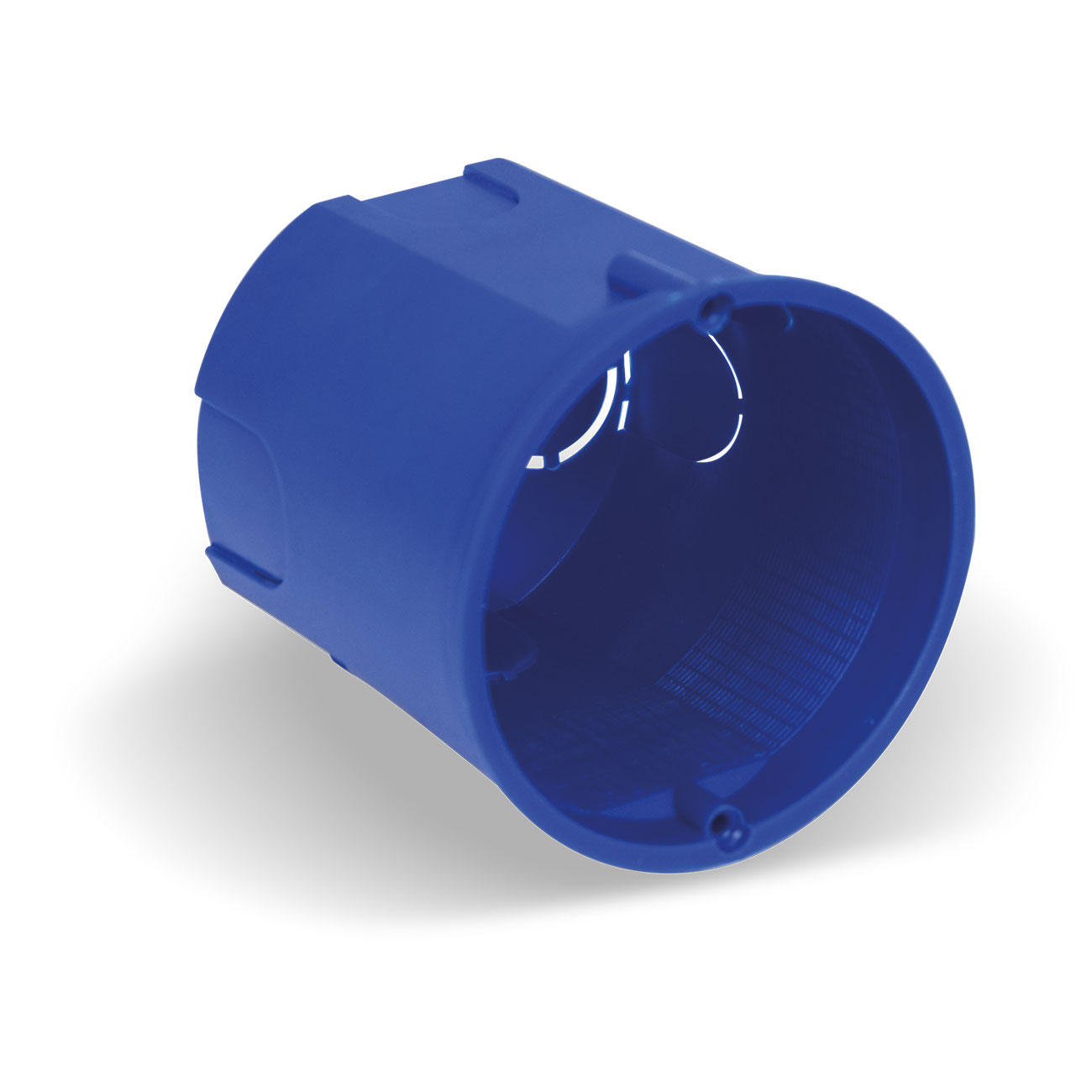

| Reference Metel: | 1-2M. FLUSH MOUNT.ROUND BOX 60X60MM |
| Product status: | In Stock |
| : | Si |
|---|---|
| Mounting method: | Flush mounted (plaster) |
| Colour: | Blue |
| Width: | 67 |
| Model: | Single |
| Halogen free: | No |
| Shape: | Round |
| Surface protection: | Untreated |
| Diameter: | 67 |
| Equipped with: | None |
| Construction type: | Built-in installation box (device box) |
| Inner depth: | 63 |
| Connectable: | No |
| Length: | 67 |
| Sealable: | No |
| Circuit integrity: | None |
| Material: | Plastic |
| Number of inlets: | 5 |
| Mounting switching equipment: | Screwing |
| Cover attachment: | Other |
| For number of electric fittings: | 2 |
| Luminaire hook mounting: | No |
| With screening: | No |
|---|---|
| With screws: | No |
| Air tight: | No |
| Depth: | 63|63 |
| Degree of protection (IP): | Other |
| For tube diameter: | Other |
| Inlet from the rear: | No |
| Pipe locking: | No |
| Special application: | None |
| Clamp position fixed: | No |
| With partition panel: | No |
| Nozzle: | None |
| Provided with revolving ring: | No |
| Housing feed-through by seal membrane: | No |
| Housing feed-through by nozzle: | No |
| Housing feed-through by step membrane: | No |
| Pipe locking optional: | No |
| Number of included spouts: | |
| Cover model: | None |
| Housing feed-through by break-out opening: | No |
| Transparent cover: | No |
| Degree of protection (NEMA): | Other |
AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
