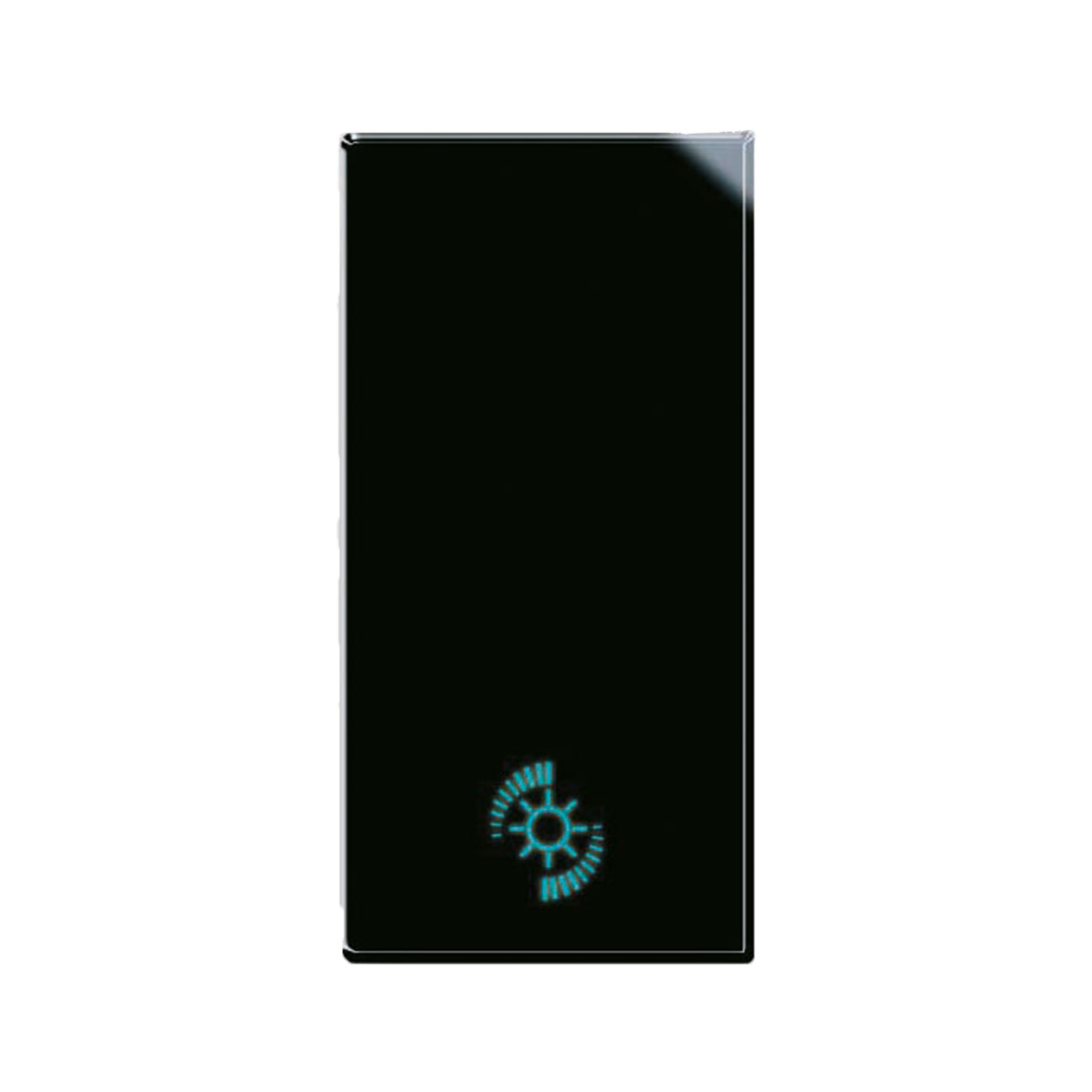

442048U

60-500W DIMMER+PUSH BUTTON LIFE 1M

Dimmer 230V~ 50-60Hz for resistive and inductive loads (incandescent and halogen lamps, ferromagnetic transformers for low voltage halogen lights) 60-500W controls and regulation with built-in push-button or from more points with normal NO buttons - led for identification in the dark - 1 module

Commercial Features

Technical data ETIM

Manuals and downloads

Request information

Commercial Features

Commercial data

Code EAN13:	8008379073740
Standard packing:	1,00
Minimum packaging:	1,00
Code EAN13 min.pck.:	8008379073740
Length min.pck.:	53,00
Width min.pck.:	48,00
Height min.pck.:	59,00
Volume min.pck.:	0,15
Weight min.pck.:	63,00
Quantity min. order:	1,00
Reference Metel:	60-500W DIMMER+PUSH BUTTON LIFE 1M
Product status:	In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:

Technical data ETIM

Mounting method:	Module frame
Assembly arrangement:	Modular device for domestic switching devices
Method of operation:	Push button
Colour:	Black
Number of units:	1
Connection type:	Screwed terminal
Surface protection:	Lacquered
Frequency:	50\|60
Material quality:	Thermoplastic
Type of load:	Resistive load
Material:	Plastic
Type of fastening:	Snapper mounting
Light value memory:	No
Substation input:	No
RAL-number (similar):	9017
Serial dimmer:	Si
Applicable with movement sensor:	Si

Applicable with transmission button:	No
Applicable with infrared button:	No
Applicable with presence indicator:	Si
Applicable with button:	No
Applicable with time switch/timer:	Si
Impact strength:	Other
Nominal voltage:	230\|230
Transparent:	No
Surface finishing:	Glossy
Suitable for degree of protection (IP):	IP20
Device width:	22.5
Device height:	45
Number of modules (module system):	1
:	Si
Dimming phase cut-off:	No
Dimming phase cut-on:	No
App control via Bluetooth:	No

Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00137:

DXF-Ingombro

Ingombri DXF (DXF):
Solido STL (STL):
Solido STP (STP):

Request information

Name / Company Name

Country

E-mail:

Phone

Business

Request:

Request details

Having read the Privacy Statement, pursuant to art. 6 of EU Reg. 2016/679

for my personal data to be processed

I agree I don't agree

for my personal data to be processed for commercial and marketing purposes

I agree I don't agree

Last update: 24-01-2025

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
