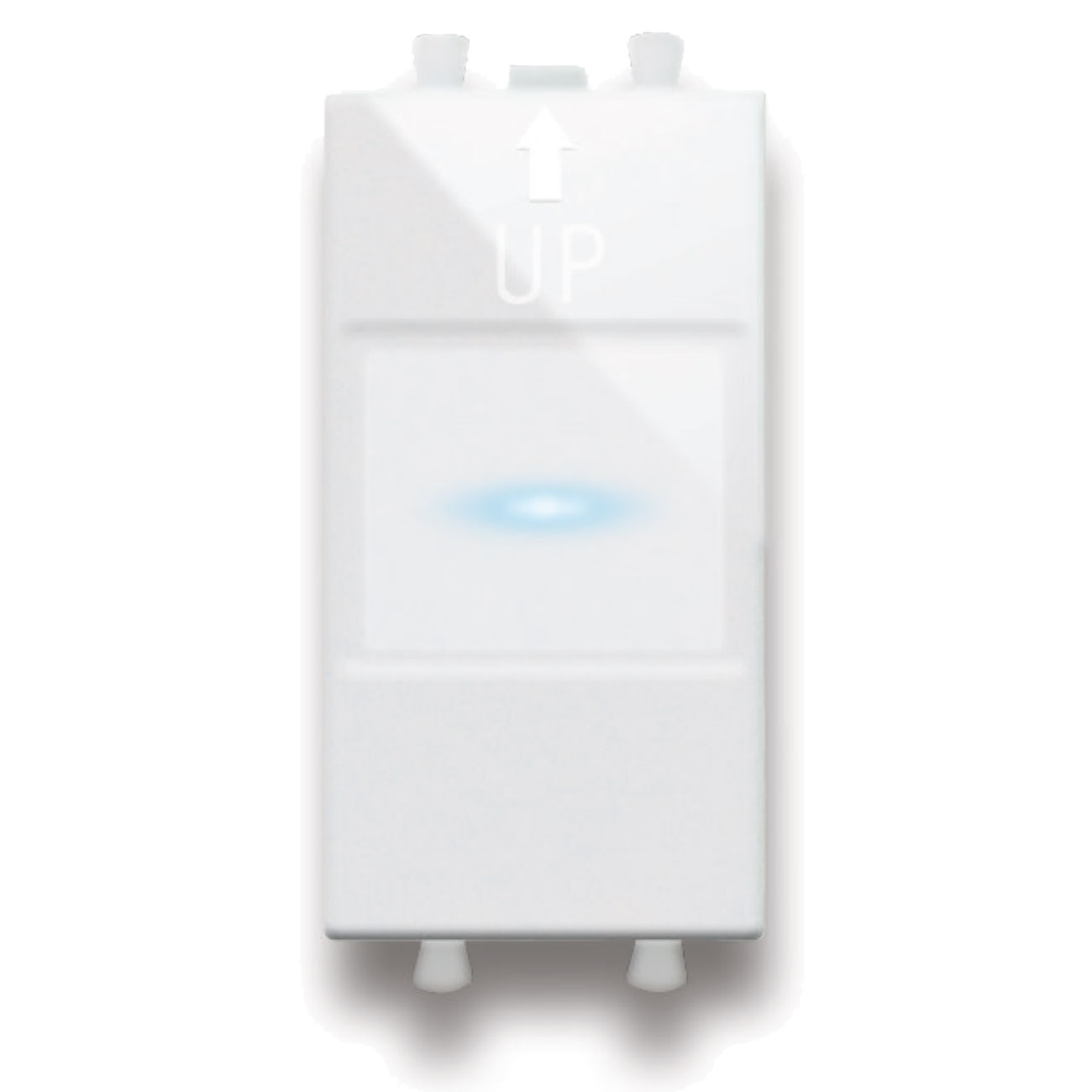

442TC01

RELAY ELEC. TOUCH SWITCH NO 6A 1M
Electronic touch switch - relay output 1P NO 6A 230V~ - controlled by touching the frontal area or from multiple points with NO buttons - monostable or bistable operating mode - low consumption led for identification in the dark - output relay status memorization in case of black out - 230V~ power supply - to be coupled with Ave Touch front plate - 1 hidden module
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379071142
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379071142
Length min.pck.: 52,00
Width min.pck.: 30,00
Height min.pck.: 59,00
Volume min.pck.: 0,09
Weight min.pck.: 49,40
Quantity min. order: 1,00
Reference Metel: RELAY ELEC. TOUCH SWITCH NO 6A 1M
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​

Reference laws and directives

I.M.Q.:
VDE:
Technical data ETIM

Technical data ETIM

Nominal voltage: 230
Mounting method: Module frame
Assembly arrangement: Other
Colour: Black
Model: Relay
Surface protection: Lacquered
Rated current: 10
Frequency: 50|60
Material quality: Thermoplastic
Type of load: Universal
Material: Plastic
Type of fastening: Other
Light value memory: Si
Substation input: No
RAL-number (similar): 9017
Applicable with movement sensor: Si
Applicable with transmission button: No
Applicable with infrared button: Si
Applicable with presence indicator: No
Applicable with button: Si
Applicable with time switch/timer: No
Transparent: No
Surface finishing: Glossy
: No
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00023:

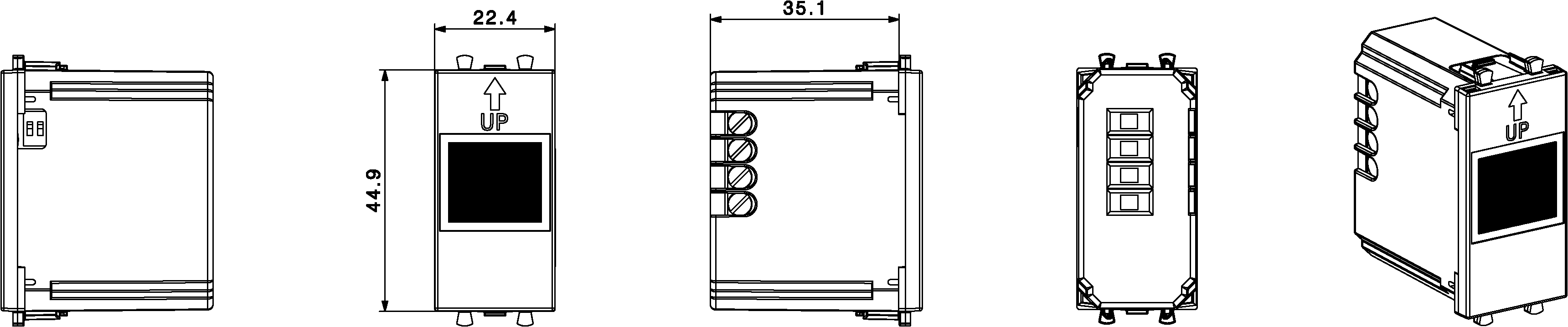

DXF-Ingombro

442TC01 (DXF):
442TC01 (PNG):

Tagliando

C0535rev15:
Request information
Last update: 19-11-2024

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
