| Code EAN13: | 8008379106752 |
|---|---|
| Standard packing: | 1,00 |
| Minimum packaging: | 1,00 |
| Code EAN13 min.pck.: | 8008379106752 |
| Length min.pck.: | 52,00 |
| Width min.pck.: | 30,00 |
| Height min.pck.: | 59,00 |
| Volume min.pck.: | 0,09 |
| Weight min.pck.: | 59,40 |
| Quantity min. order: | 1,00 |

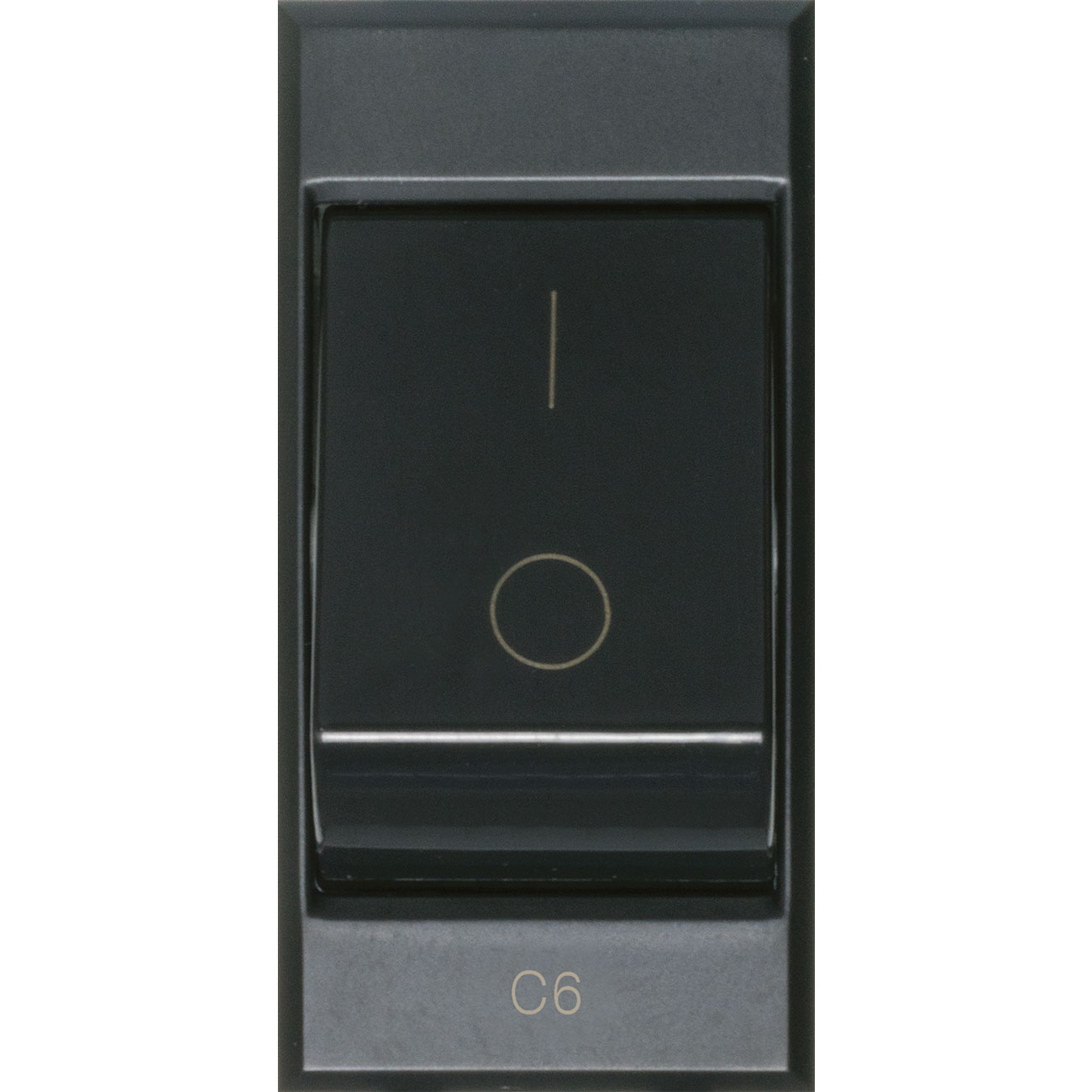

| Reference Metel: | MCB 1P+N 6A 230V 1.5KA TEKLA 1M |
| Product status: | In Stock |
| Voltage type: | AC |
|---|---|
| Rated current: | 6 |
| Rated voltage: | 230 |
| Frequency: | 50|60 |
| Release characteristic: | C |
| Over voltage category: | 3 |
| Width in number of modular spacings: | 1 |
| Degree of protection (IP): | Other |
|---|---|
| Number of protected poles: | 1 |
| Concurrently switching neutral conductor: | Si |
| Flush-mounted installation: | No |
| Additional equipment possible: | No |
| Number of poles (total): | 2 |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230: | 3 |
AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
