| Code EAN13: | 8008379106356 |
|---|---|
| Standard packing: | 50,00 |
| Code EAN13 std. pck.: | 8008379305957 |
| Length std. pck.: | 375,00 |
| Width std. pck.: | 270,00 |
| Height std. pck.: | 120,00 |
| Volume std. pck.: | 12,15 |
| Weight std. pck.: | 2898,00 |
| Minimum packaging: | 5,00 |
| Code EAN13 min.pck.: | 8008379238088 |
| Length min.pck.: | 253,00 |
| Width min.pck.: | 71,00 |
| Height min.pck.: | 55,00 |
| Volume min.pck.: | 0,98 |
| Weight min.pck.: | 274,80 |
| Quantity min. order: | 5,00 |

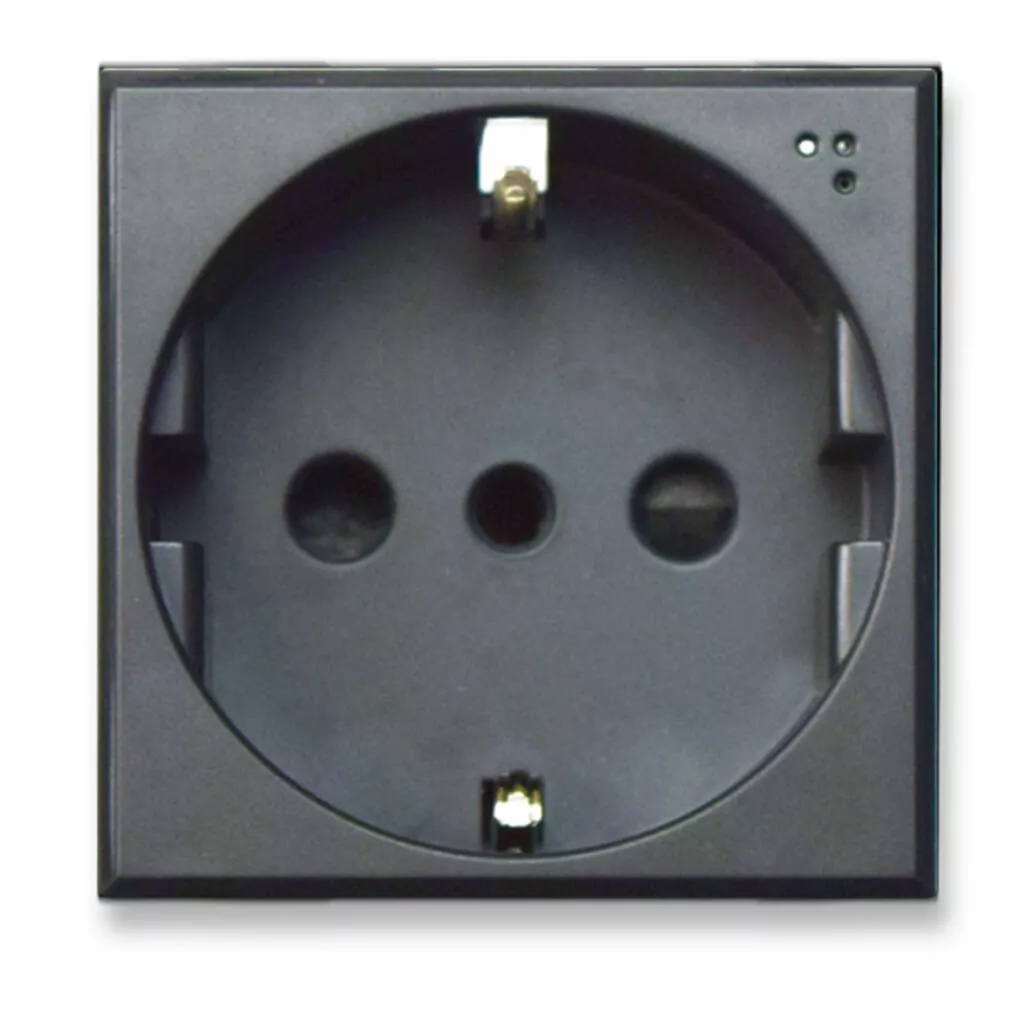

| Reference Metel: | 2P+E 16A P30 SCHUKO SOCKET TEKLA 2M |
| Product status: | In Stock |
| Nominal current: | 16 |
|---|---|
| Nominal voltage: | 250 |
| Mounting method: | Module frame |
| Colour: | Grey |
| Model: | Swiss norm type 30 |
| Halogen free: | Si |
| Number of units: | 1 |
| Lockable: | No |
| With hinged lid: | No |
| Connection type: | Screwed terminal |
| Surface protection: | Untreated |
| With signal lamp: | Si |
| Number of phases: | 1 |
| With enhanced contact protection: | No |
| Frequency: | 50|60 |
| With on/off switch: | No |
| Number of ports USB-A: | |
| Label space/information surface: | No |
| Eject-mechanism: | No |
| Material quality: | Thermoplastic |
| Rotated central insert: | No |
| Over voltage protection: | No |
| Fault current protection: | No |
| Special power supply: | No special power supply |
|---|---|
| Insulated mounting: | No |
| Material: | Plastic |
| Type of fastening: | Snap mounting (engagement) |
| Imprint/indication: | None |
| RAL-number (similar): | 7016 |
| Impact strength: | Other |
| Transparent: | No |
| Surface finishing: | Matt |
| With miniature fuse: | No |
| With loop through function: | No |
| Suitable for degree of protection (IP): | IP20 |
| Device width: | 45 |
| Device height: | 45 |
| Number of socket outlets switchable: | |
| With function lighting: | Si |
| With orientation lighting: | No |
| Number of modules (module system): | 2 |
| : | |
| Number of active pins (round): | 2 |
| Number of active pins (flat): | |
| Anti-bacterial treatment: | No |
AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
