| Code EAN13: | 8008379148240 |
|---|---|
| Standard packing: | 50,00 |
| Code EAN13 std. pck.: | 8008379307395 |
| Length std. pck.: | 375,00 |
| Width std. pck.: | 270,00 |
| Height std. pck.: | 120,00 |
| Volume std. pck.: | 12,15 |
| Weight std. pck.: | 2098,00 |
| Minimum packaging: | 5,00 |
| Code EAN13 min.pck.: | 8008379241675 |
| Length min.pck.: | 253,00 |
| Width min.pck.: | 71,00 |
| Height min.pck.: | 55,00 |
| Volume min.pck.: | 0,98 |
| Weight min.pck.: | 194,80 |
| Quantity min. order: | 5,00 |

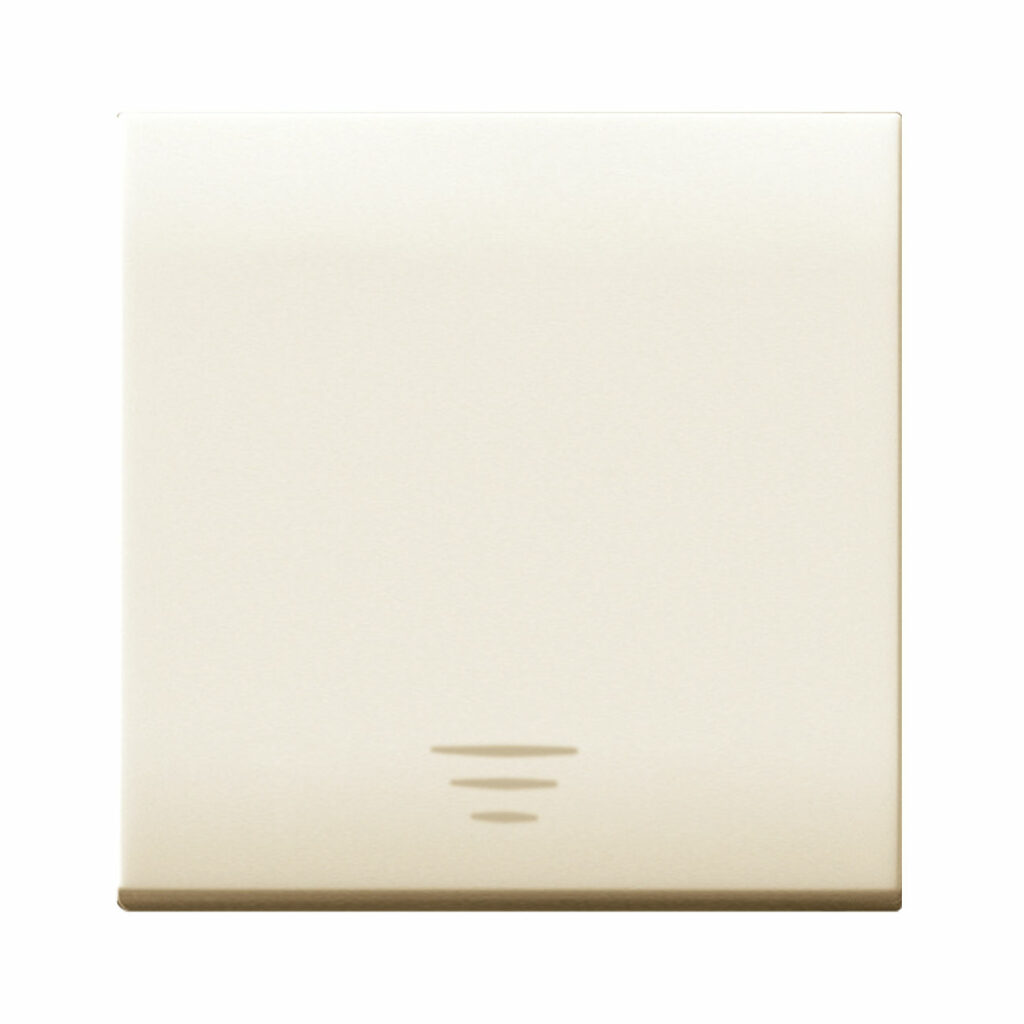

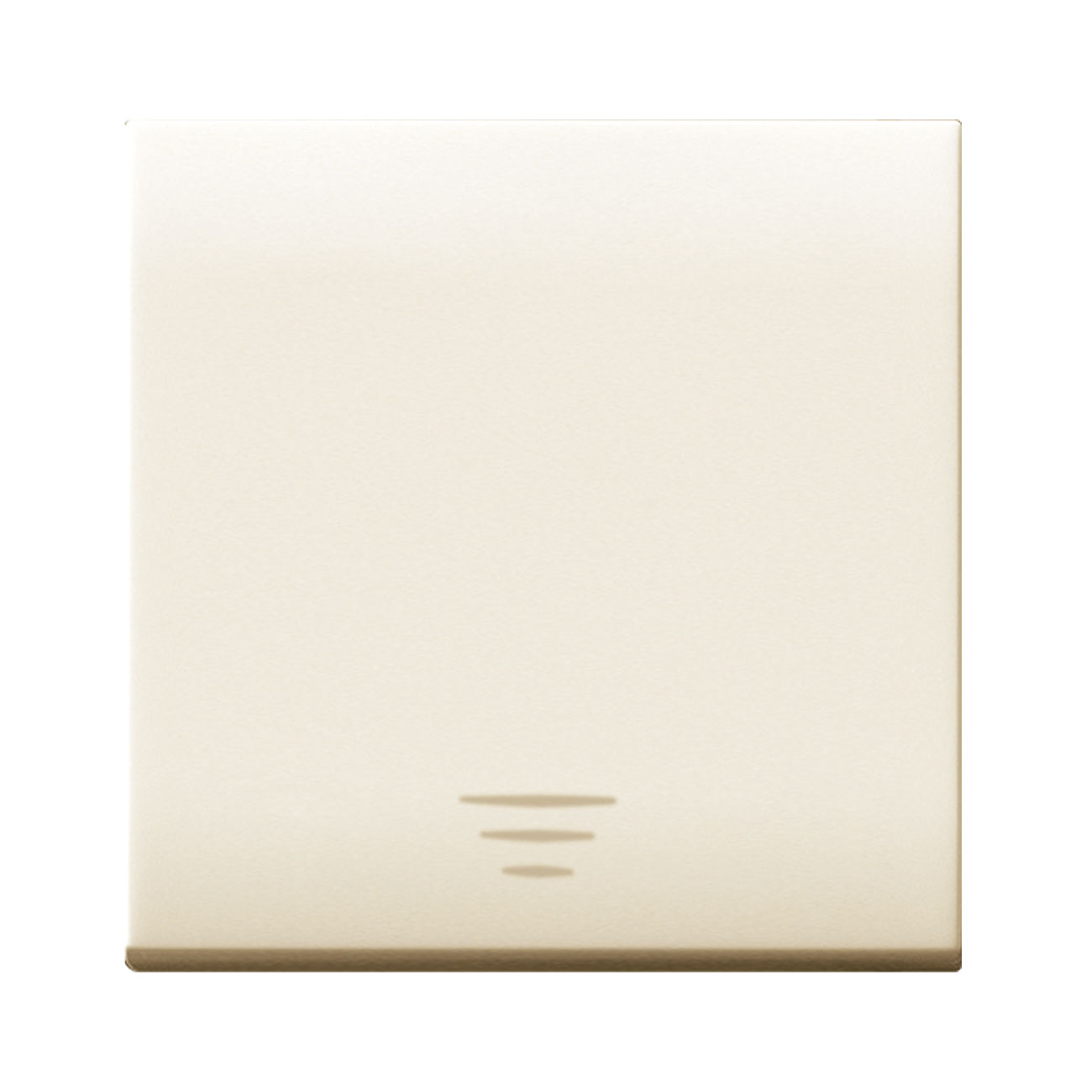

| Reference Metel: | 10A 1P NO LIGHT.PUSH BUTTON CL44 2M |
| Product status: | In Stock |
| Nominal current: | 10 |
|---|---|
| Nominal voltage: | 250 |
| Method of operation: | Push button |
| Model: | Push button, normally open |
| Number of poles: | 1-pole |
| Connection type: | Screwed terminal |
| Illumination: | Other |
| Colour housing: | White |
| Surface protection: | Untreated |
| Colour control elements: | White |
| Material quality: | Thermoplastic |
|---|---|
| Material: | Plastic |
| Type of fastening: | Snap |
| Number of control elements: | 1 |
| Imprint/indication: | |
| RAL-number (similar) control element: | 1013 |
| Transparent: | No |
| Surface finishing: | Glossy |
| With cover edge: | Si |
AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
