| Code EAN13: | 8008379051502 |
|---|---|
| Standard packing: | 100,00 |
| Code EAN13 std. pck.: | 8008379302338 |
| Length std. pck.: | 375,00 |
| Width std. pck.: | 270,00 |
| Height std. pck.: | 120,00 |
| Volume std. pck.: | 12,15 |
| Weight std. pck.: | 3190,00 |
| Minimum packaging: | 10,00 |
| Code EAN13 min.pck.: | 8008379220267 |
| Length min.pck.: | 253,00 |
| Width min.pck.: | 71,00 |
| Height min.pck.: | 55,00 |
| Volume min.pck.: | 0,98 |
| Weight min.pck.: | 304,00 |
| Quantity min. order: | 10,00 |
| Reference Metel: | ONE WAY SWITCH 16AX 1M BANQUISE |
| Product status: | In Stock |
| Nominal voltage: | 250 |
|---|---|
| Mounting method: | Module frame |
| Assembly arrangement: | Modular device for domestic switching devices |
| Method of operation: | Rocker/button |
| Colour: | White |
| With mounting plate: | No |
| Connection type: | Screwed terminal |
| Illumination: | No |
| Surface protection: | Untreated |
| Rated current: | 16 |
| Feedback-signal contact: | No |
| Material quality: | Thermoplastic |
| Type of lighting: | Other |
| Material: | Plastic |
| Type of fastening: | Engage (snap) |
| Wiring system: | Off switch 1-pole |
| Number of rockers: | 1 |
|---|---|
| RAL-number (similar): | 9016 |
| Switching current for fluorescent lamps: | 16 |
| Push button switch: | Si |
| Impact strength: | Other |
| Washing machine switch: | No |
| Surface finishing: | Glossy |
| Suitable for degree of protection (IP): | IP40 |

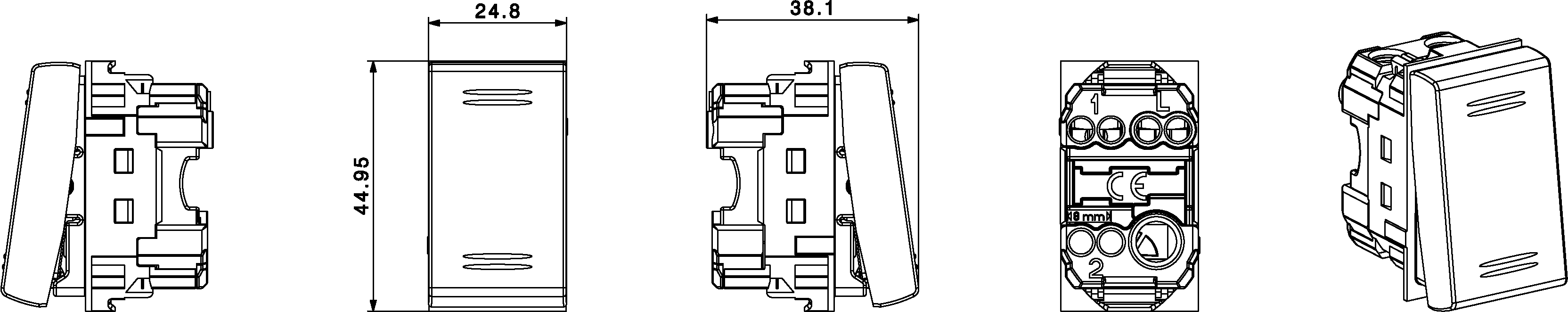

| Device width: | 25 |
| Device height: | 45 |
| Label space/information surface: | Optional |
| Function lighting: | Other |
| Number of modules (module system): | 1 |
| : | No |
| Anti-bacterial treatment: | No |
AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
