Code EAN13: | 8008379057894 |
---|---|
Standard packing: | 6,00 |
Code EAN13 std. pck.: | 8008379220366 |
Length std. pck.: | 220,00 |
Width std. pck.: | 155,00 |
Height std. pck.: | 90,00 |
Volume std. pck.: | 3,06 |
Weight std. pck.: | 546,00 |
Minimum packaging: | 1,00 |
Code EAN13 min.pck.: | 8008379057894 |
Length min.pck.: | 120,88 |
Width min.pck.: | 85,16 |
Height min.pck.: | 49,45 |
Volume min.pck.: | 0,50 |
Weight min.pck.: | 80,50 |
Quantity min. order: | 6,00 |

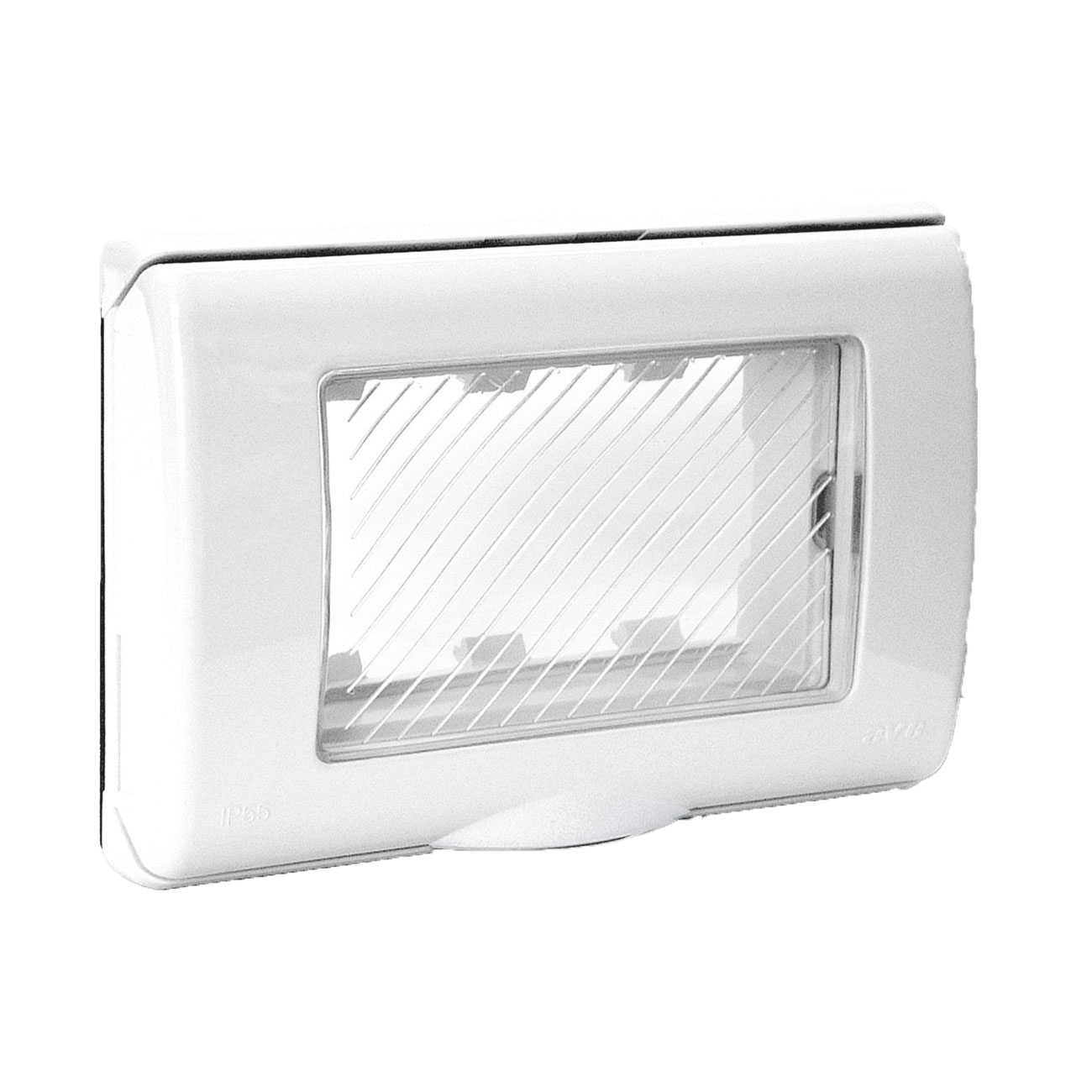

Reference Metel: | IP55 FR.PLATE+SOFT COVER 3M.BANQ.W. |
Product status: | In Stock |
Colour: | White |
---|---|
Width: | 120 |
Height: | 85 |
Depth: | 23 |
Number of units: | 3 |
With hinged lid: | Si |
Surface protection: | Untreated |
Label space/information surface: | No |
Material quality: | Thermoplastic |
Material: | Plastic |
Type of fastening: | Screw mounting |
Mounting direction: | Horizontal |
RAL-number (similar): | 9016 |
Impact strength: | IK00 |
---|---|
Degree of protection (IP): | IP55 |
Transparent: | Si |
Surface finishing: | Matt |
Suitable for wall duct: | Si |
Suitable for flush-mounted installation: | Si |
Suitable for built-in installation: | Si |
Number of units horizontal: | 3 |
Number of units vertical: | 1 |
Number of modules horizontal (module system): | 3 |
Number of modules vertical (module system): | 1 |
With mounting grid: | Si |
Number of switch inserts: |
AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
