53T08BG

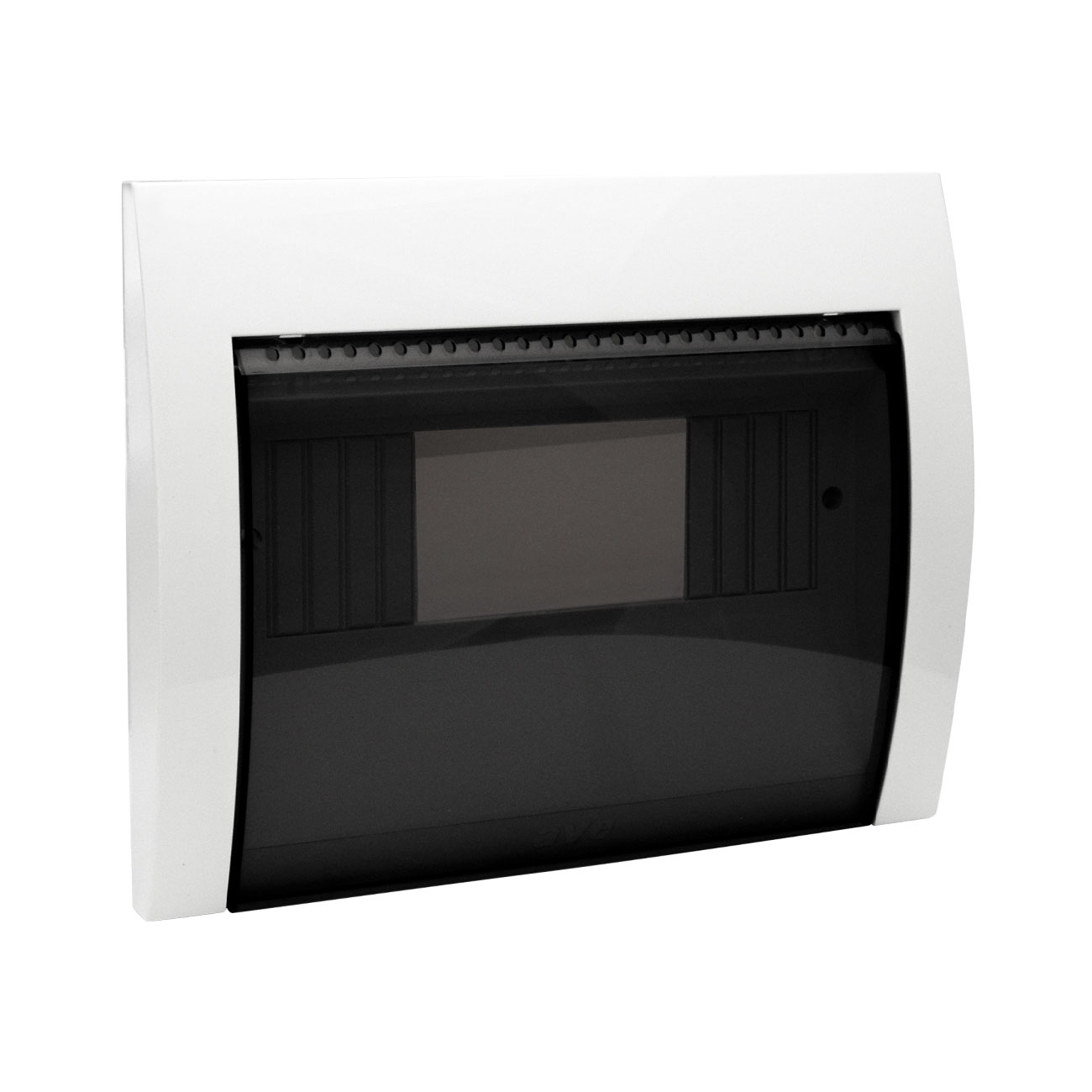

Banquise white cover with tinted flap for BL06P box - 8 modules
RAL 9016 Banquise white cover with door for BL06P and BL06CG* box 8 DIN mod. - dimensions (L H D): 207x169x28 mm
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379015924
Standard packing: 8,00
Code EAN13 std. pck.: 8008379203932
Length std. pck.: 375,00
Width std. pck.: 185,00
Height std. pck.: 280,00
Volume std. pck.: 19,42
Weight std. pck.: 2346,32
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379015924
Length min.pck.: 187,50
Width min.pck.: 92,50
Height min.pck.: 140,00
Volume min.pck.: 2,42
Weight min.pck.: 270,04
Quantity min. order: 1,00
Reference Metel: WHITE ICE COVER WITH DOOR 8 MODULES
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​

Reference laws and directives

I.M.Q.:
Technical data ETIM

Technical data ETIM

Mounting method: Other
Colour: White
Width: 153
UV resistant: Si
Height: 207
Depth: 28
RAL-number: 9016
With mounting plate: No
Built-in depth: 28
Number of rows: 1
Built-in height: 207
Type of cover: Cover
Built-in width: 153
EMC-version: No
Extension possible: Si
Inner depth: 28
DIN-rail: Si
Material housing: Plastic
Width in number of modular spacings: 8
Type of closure: Other
Type of door: Single
Degree of protection (IP): IP40
Transparent cover/door: Si
With lock: No
Cover model: With notch
: No
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00389:

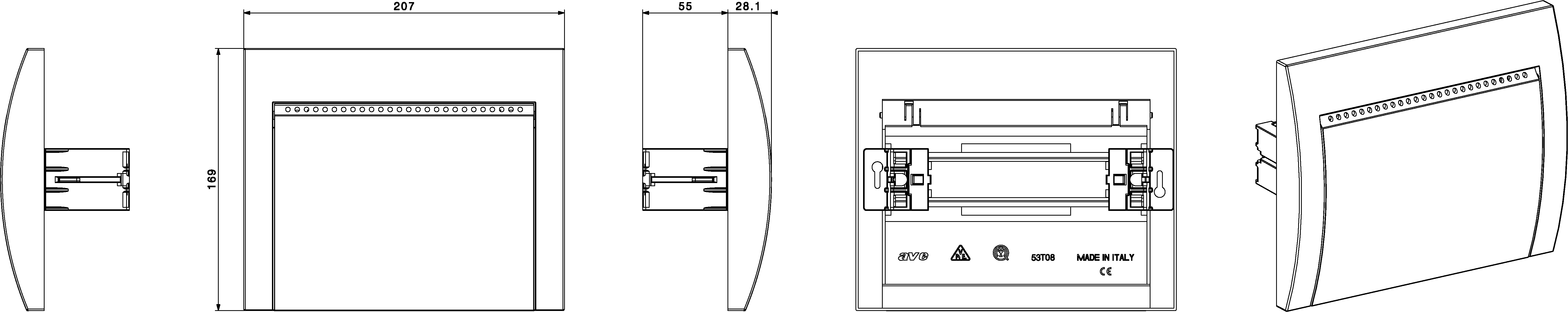

DXF-Ingombro

53T08BG (DXF):
53T08BG (PNG):
Request information
Last update: 25-11-2024

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
