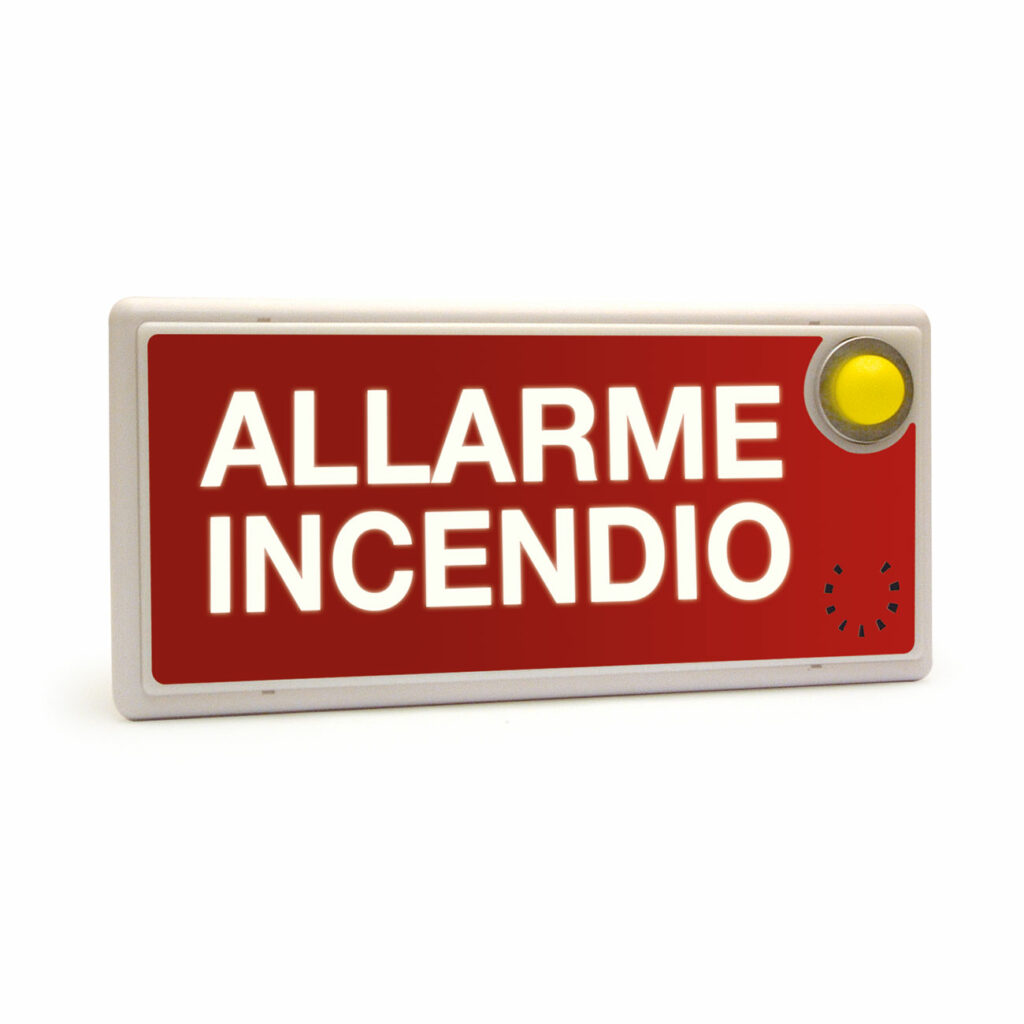

AC9IL4

Optic. acoustic signal X fire alarm LED signal lamp
Optical acoustic wired signaller for fire alarm signalling. 24Vdc power supply. Consumption 66mA at 12Vcc, 58mA a 24Vcc. Optical part made with a high-brightness LED. IP54 protection degree. Standard compliance: EN 54-3 and 54-23 Dimensions 365x175x55mm.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379094660
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379094660
Length min.pck.: 380,00
Width min.pck.: 175,00
Height min.pck.: 80,00
Volume min.pck.: 5,32
Weight min.pck.: 780,00
Quantity min. order: 1,00
Reference Metel: OPTIC.ACOUSTIC SIGNAL.X FIRE ALARM.
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​
Technical data ETIM

Technical data ETIM

Mounting method: Surface mounting
Power: 4
Colour housing: Red
Type of current: DC
Loudness: 88
Electricity consumption: 0.13
Lamp type: LED
Colour of lamp hood: Red
Type of optical signal: Other
Type of acoustic signal: Pulse tone/continuous tone
With contact: No
Nominal voltage: 0|24
Degree of protection (IP): IP54
For Ex-zone gas: None
Suitable for wall mounting: Si
Frequency sound signal: 2 | 2,3
For Ex-Zone dust: None
Type of acoustic signal device: Other
: No
Degree of protection (NEMA): Other
According to EN 54-23: Si
Power consumption in standby mode: 100
Suitable for ceiling mounting: No
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00637:
Request information
Last update: 10-04-2025

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
