AF443062

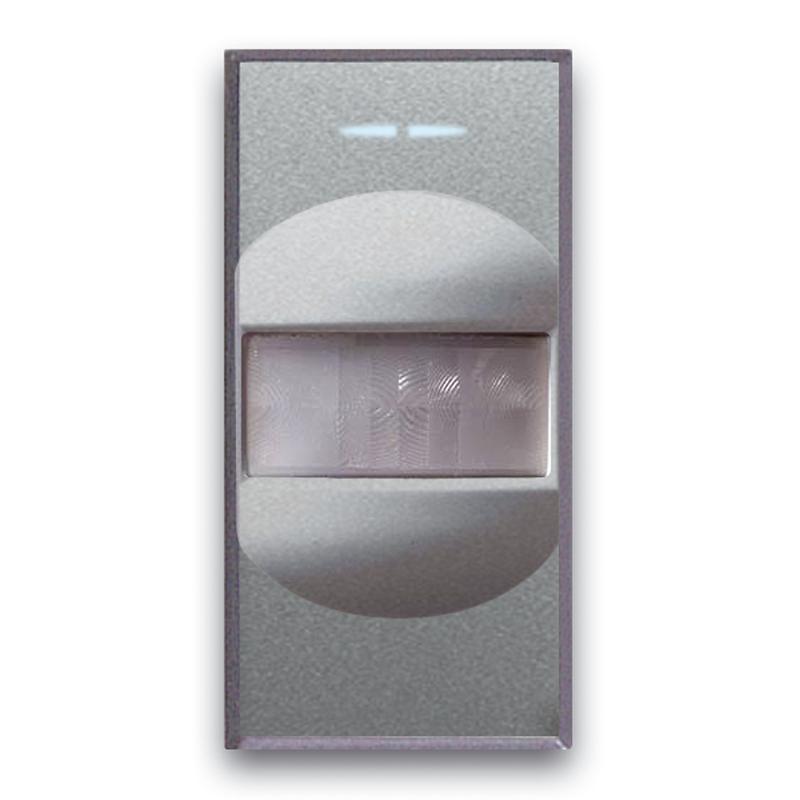

IR-P detect. anti-burglar - S44 DOMUS 1MAllumia
Wired PIR flush mounted detector. Consumption range 7mA. Range 10m. S44 Allumia series.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379083015
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379083015
Length min.pck.: 53,00
Width min.pck.: 48,00
Height min.pck.: 59,00
Volume min.pck.: 0,15
Weight min.pck.: 47,00
Quantity min. order: 1,00
Reference Metel: IRP DETECTOR ANTI-BURGLAR ALLUMIA
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​
Technical data ETIM

Technical data ETIM

Mounting method: Built-in
Width: 22.5
Height: 45
Depth: 48
Characteristic: Surface
Operating voltage: 10.5|14
Cover monitoring: Si
Type of messaging: Passive infrared
Operating current: 7
Detection range: 1
Radio system: No
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00621:

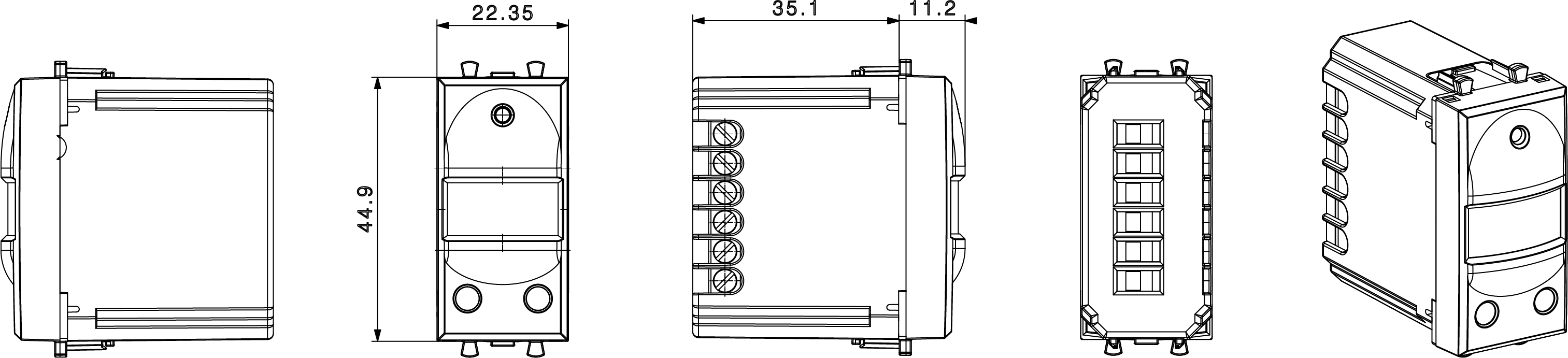

DXF-Ingombro

AF443062 (DXF):
AF443062 (PNG):

Tagliando

FOGLIO ISTRUZIONI AF44_062 E AF45_62:
Request information
Last update: 20-06-2024

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
