AF927PLUSTC

Radio/Wire contr. Unit with 7"LCD

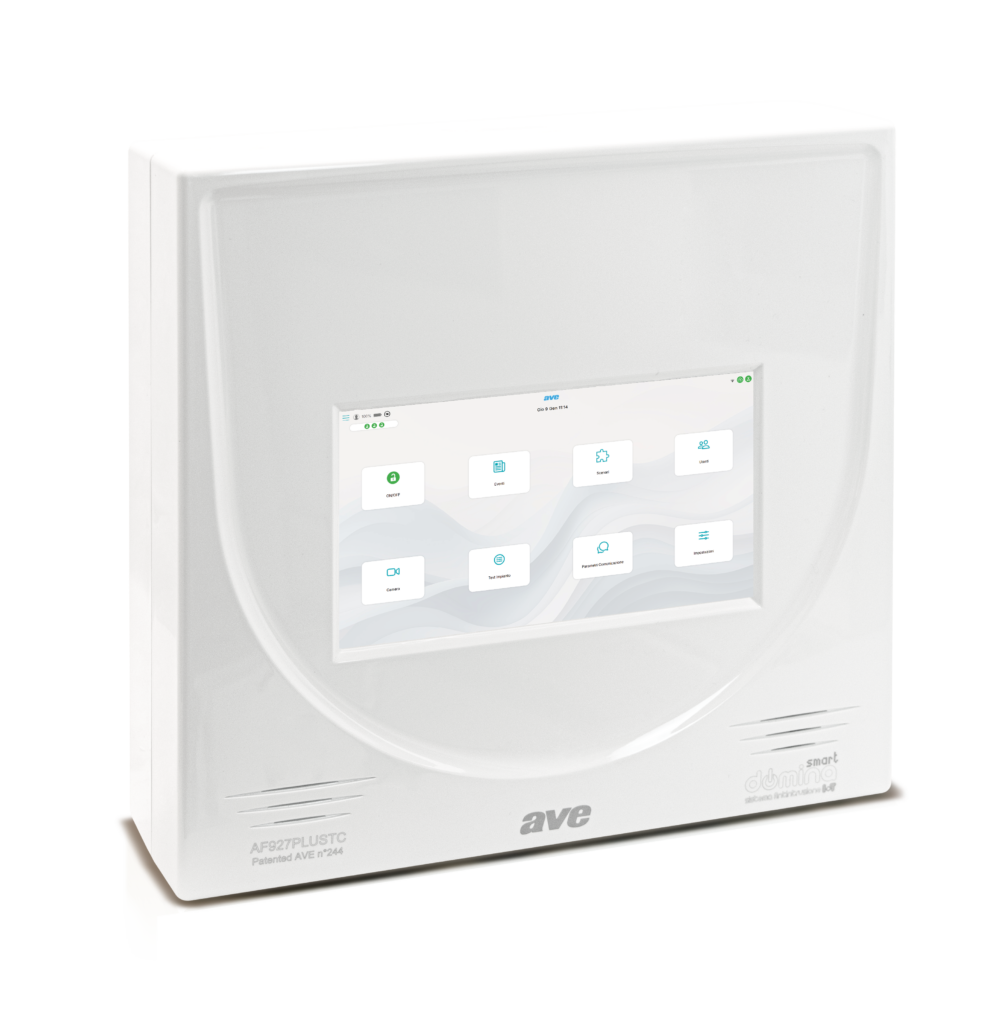

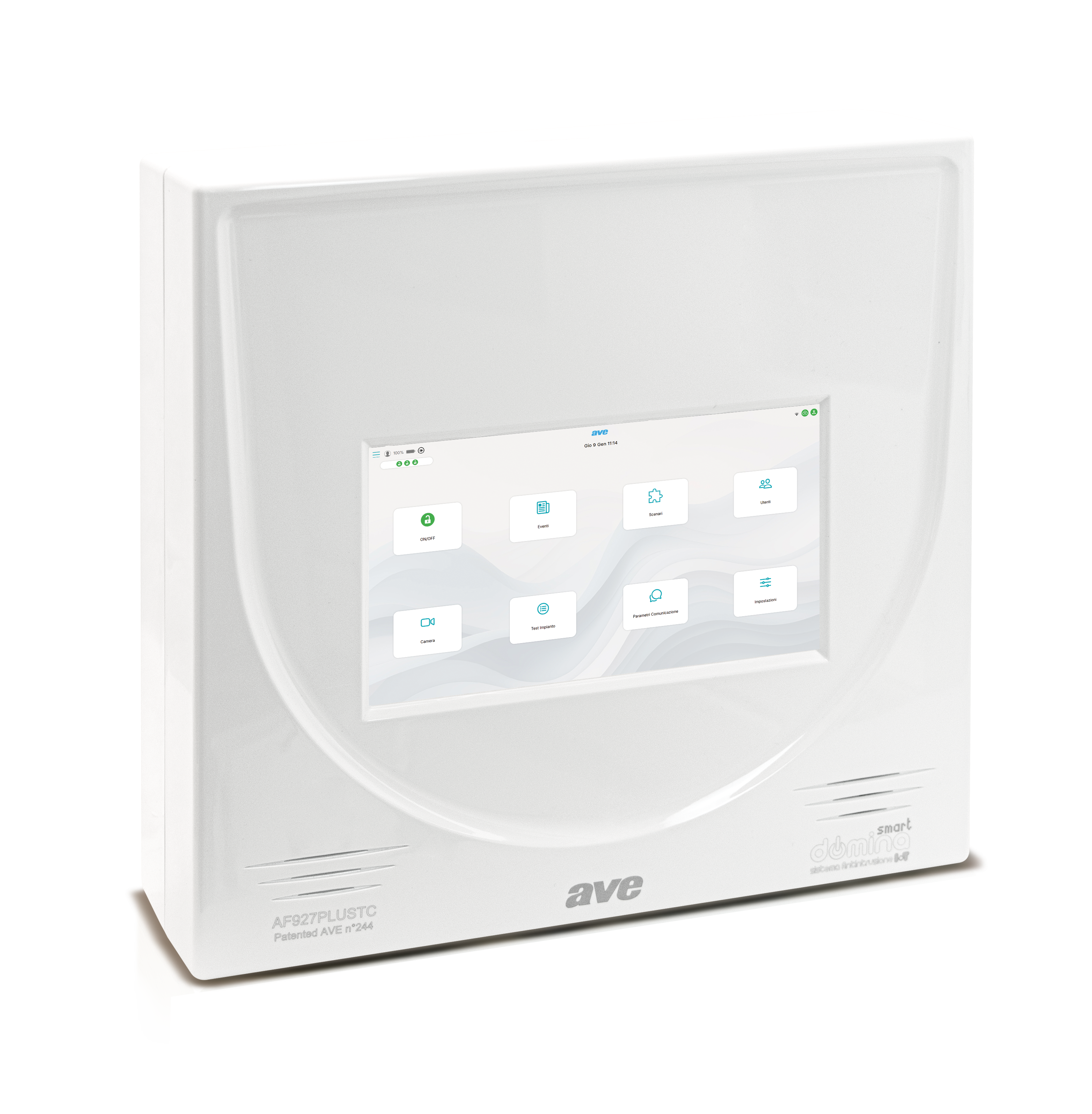

Radio and wire control unit with integrated web server and Wi-Fi module. 230Vac power supply. N.99 radio channels, n.99 detectors individually identifiable via 7-inch color LCD touch screen display and / or any device equipped with a web browser. Ability to transmit voice messages and / or alarm SMS. N.8 wired inputs (16 with double function). Possibility of expanding the wired BUS by means of the AF927INTFIL interface card. Balancing resistors supplied. Voice synthesis for recording voice signals to be combined with the messages shown on the display. Dual band. To be completed with 2 AF911 batteries. Color RAL 9016. Dimensions 270 x 262 x 82 mm.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379149605
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379149605
Length min.pck.: 375,00
Width min.pck.: 270,00
Height min.pck.: 120,00
Volume min.pck.: 12,15
Weight min.pck.: 2115,30
Quantity min. order: 1,00
Reference Metel: RADIO/WIRE CONTR.UNIT WITH 7" LCD
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​

Reference laws and directives

RAEE CAT. 5.18 RIPRODUZ.SUONI:
AVE_UE20190923AF927PLUSTC:
RAEE CAT. 5.18 RIPRODUZ.SUONI
Technical data ETIM

Technical data ETIM

Width: 270
Height: 260
Depth: 82
Operating voltage: 230
Suitable for bus connection: Si
With power adaptor: Si
Radio connection: Si
Emergency power supply integrated: Si
Interface external: Si
Number of outputs for acoustic signal generators: 1
Number of outputs for optical signal generators: 1
Number of detection groups: 6
Number of sabotage groups: 6
Occurrence memory: Si
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00616:

Manuals

Guida Rapida AF927PLUS - AF927PLUSTC_Rev 004:
Installation guide AF927PLUS_Rev 12_EN:
AF927PLUS-AF927PLUSTC_Manuale Completo Installatore Rev 12:
AF927PLUS_Manuale Utente _Rev 005:

Tagliando

C0693rev02:
MANUALE RAPIDO AF927PLUS AF927PLUSTC:
DIMA PER SIRENA E CENTRALE:

Software

UPD centrale antifurto AF927PLUS e AF927PLUSTC v203:
Request information
Last update: 20-06-2024

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
