AF949PLUS

Wired/wireless 1,5A central unit - possibility of expansion up to 36 inputs. supplied with keyboard.

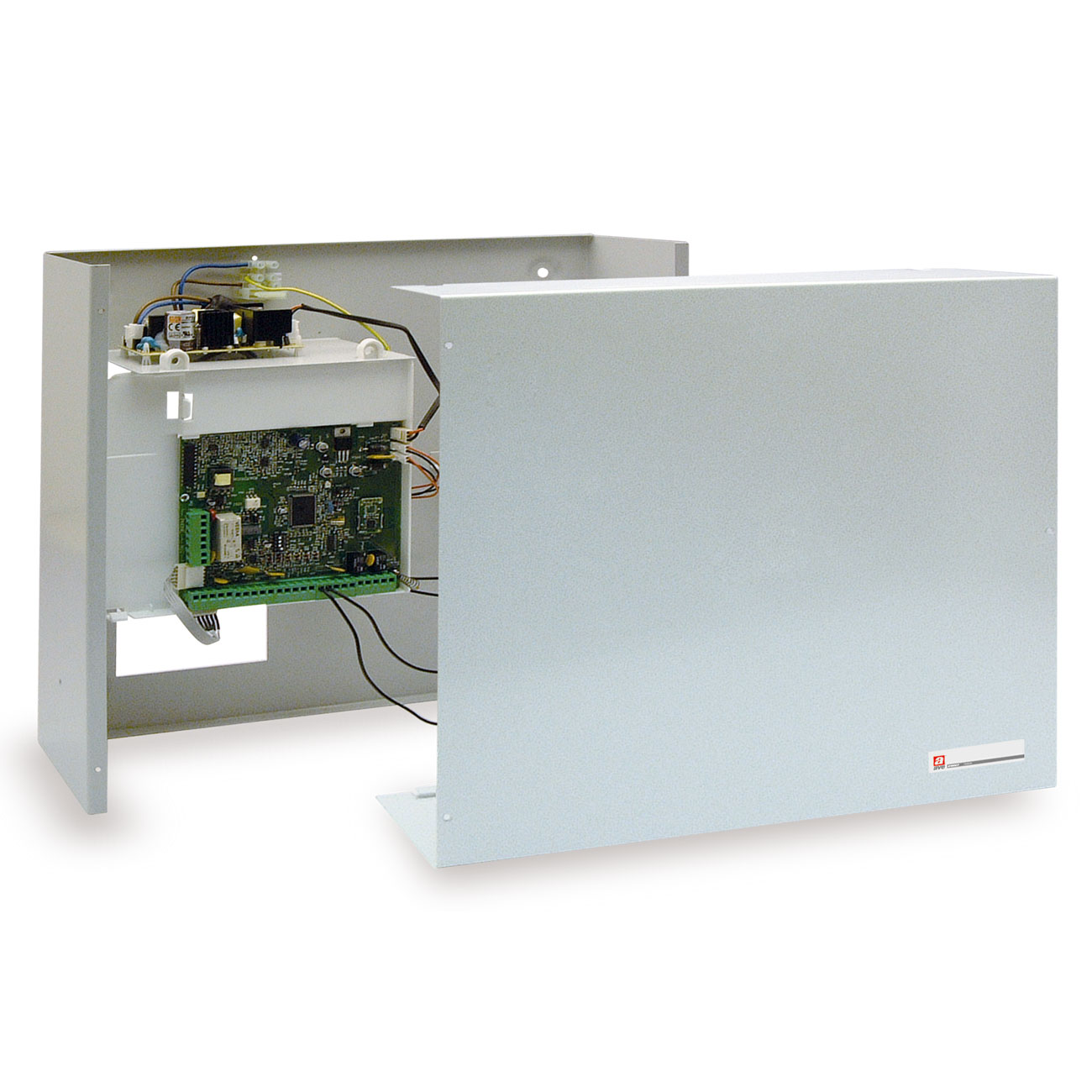

Kit with: AF949 wired/wireless anti-intrusion central unit with six inputs on-board expandable to 36. The central unit also has a PSTN telephone dialler and a voice synthesizer included. Central unit with 1,5A power supplier. It can control up to 36 devices: n.7 touch screen keyboards (1 master and 6 slave), n.2 radio modules, n.16 multifunctional relay output modules, n.16 transponder key readers. To be completed with n.2 AF919 batteries. Dimensions 340x255x80 mm. AF984TM Backlighted master touch screen keyboard with electronic reader for tag AF340-T included. It has a voice guidance in Italian which gives information to the installer and to the user. - Dimensions 106x135x30mm.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379088805
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379088805
Length min.pck.: 445,00
Width min.pck.: 325,00
Height min.pck.: 103,00
Volume min.pck.: 14,89
Weight min.pck.: 3700,00
Quantity min. order: 1,00
Reference Metel: WIRED/WIRELESS 1,5A CENTRAL UNIT
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​

Reference laws and directives

RAEE CAT. 5.18 RIPRODUZ.SUONI:
AVEUE20201210_AF949PLUS:
RAEE CAT. 5.18 RIPRODUZ.SUONI
Technical data ETIM

Technical data ETIM

Width: 380
Height: 365
Depth: 130
Operating voltage: 230
Suitable for bus connection: Si
With power adaptor: Si
Radio connection: No
Emergency power supply integrated: Si
Interface external: Si
Number of outputs for acoustic signal generators: 1
Number of detection groups: 36
Occurrence memory: Si
Integrated dial device: No
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00617:

Manuals

AF949PLUS - AF999EXP Manuale completo Rev. 006:
AF949PLUS - AF999EXP Guida rapida per l'installazione:
AF949PLUS - AF999EXP Manuale Utente:

Tagliando

GUIDA RAPIDA AF999EXP e AF949:
ISTRUZIONI UTENTE CENTRALI AF:
Request information
Last update: 20-06-2024
