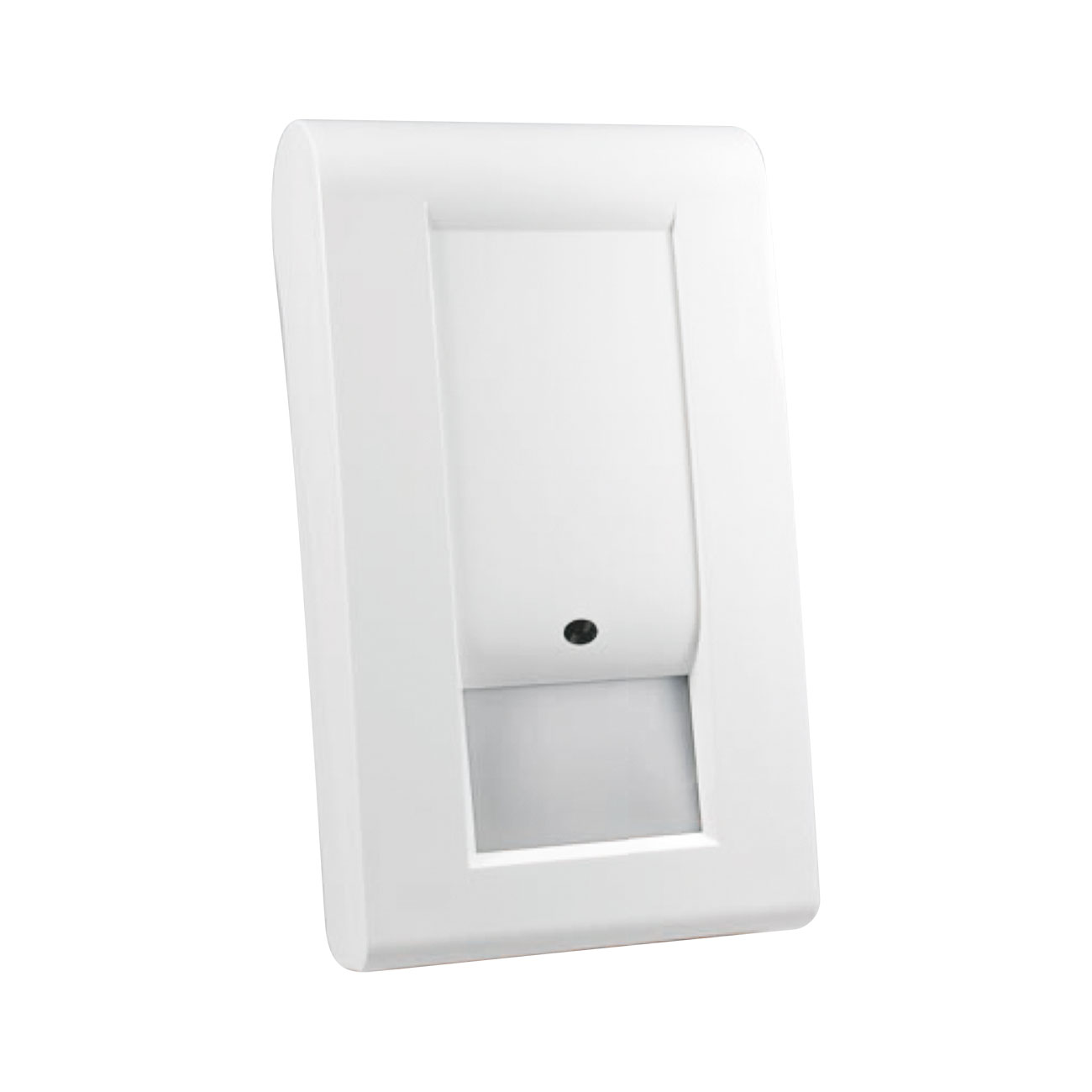

AF974R-DB

DT RADIO DECTECTOR FOR OUTDOOR USE
Dual technology radio detector for sheltered outdoor use (Class III). Dual band transmission. It can be used with all the radio central units made by AVE. To be completed with AF961 joint. Power supply: 3 1,5V AA batteries. Dimensions 155x87x48mm.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379091560
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379091560
Length min.pck.: 158,00
Width min.pck.: 98,00
Height min.pck.: 55,00
Volume min.pck.: 0,85
Weight min.pck.: 692,00
Quantity min. order: 1,00
Reference Metel: DT RADIO DECTECTOR FOR OUTDOOR USE
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​

Reference laws and directives

AVEUE20201210_AF974R-DB:
Technical data ETIM

Technical data ETIM

Mounting method: Surface mounting
Width: 87
Height: 155
Depth: 48
Characteristic: Distance
Cover monitoring: Si
Type of messaging: Passive infrared/ultrasonic (dual)
Operating current: 0.04
Detection range: 1
Radio system: Si
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00628:
Request information
Last update: 20-06-2024

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
