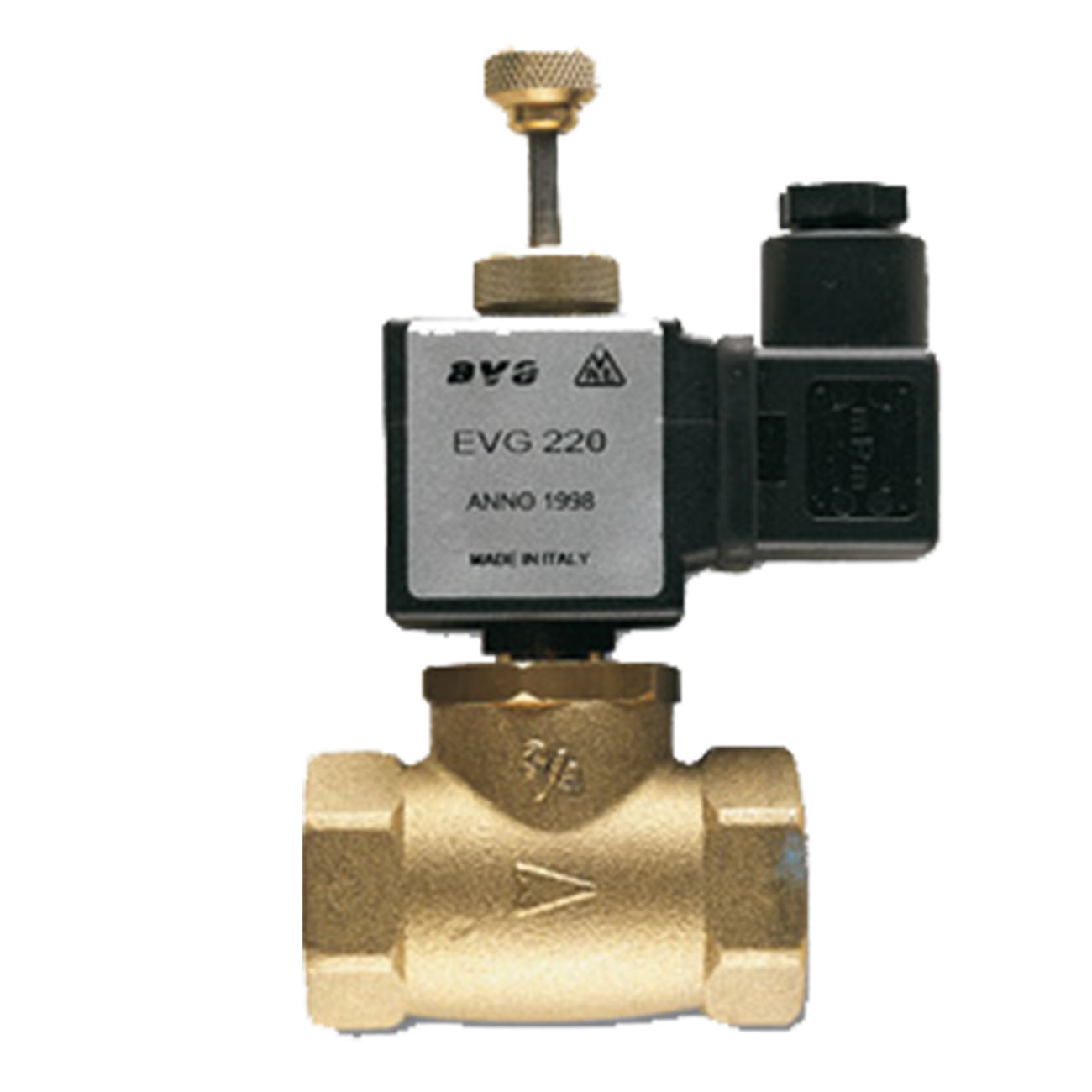

EVG220

220VAC GAS SOLENOID VALVE - 3/4" - 14VA"
Electrovalve 230Vac - 3/4 - 14VA.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379022892
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379022892
Length min.pck.: 158,00
Width min.pck.: 98,00
Height min.pck.: 55,00
Volume min.pck.: 0,85
Weight min.pck.: 537,00
Quantity min. order: 1,00
Reference Metel: GAS ELECTRO-VALVE 220 VAC
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​
Technical data ETIM

Technical data ETIM

Model: Straight
Surface protection: Other
Voltage type: AC
Connection 1: Other
Connection 2: Other
Material quality: Other
Material housing: Brass
Connection voltage: 230
Electrical connection: Plug EN 175301-803 type A
Explosion safety: None
Degree of protection (IP): IP65
With sieve: No
: No
Freeflow: No
Outer pipe diameter connection 1: 19
Outer pipe diameter connection 2: 19
Flange compression class: Other
Max. ambient temperature: 60
Indirect effect: Si
Deactivated when open: Si
Material sealing: Other
Nominal diameter: 3/4 inch (20)
Switch-on duration:
Emergency manual operation: Push button
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00633:

Tagliando

C0344rev04:
Request information
Last update: 10-04-2025

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
