KV01-1PIT7B

SINGLE-FAMILY 2 WIRE EXPANDABLE KIT WITH 7" TOUCH SCREEN

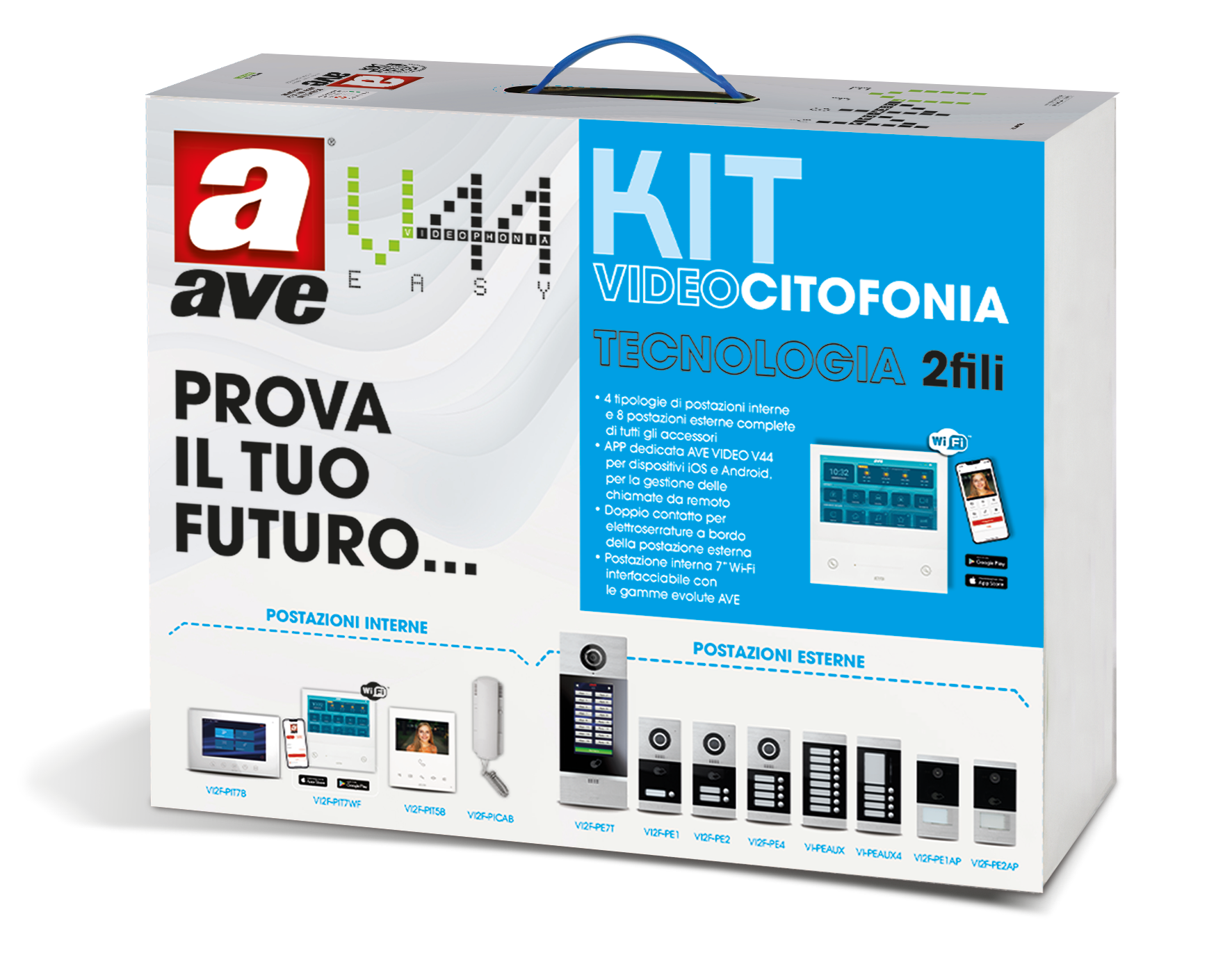

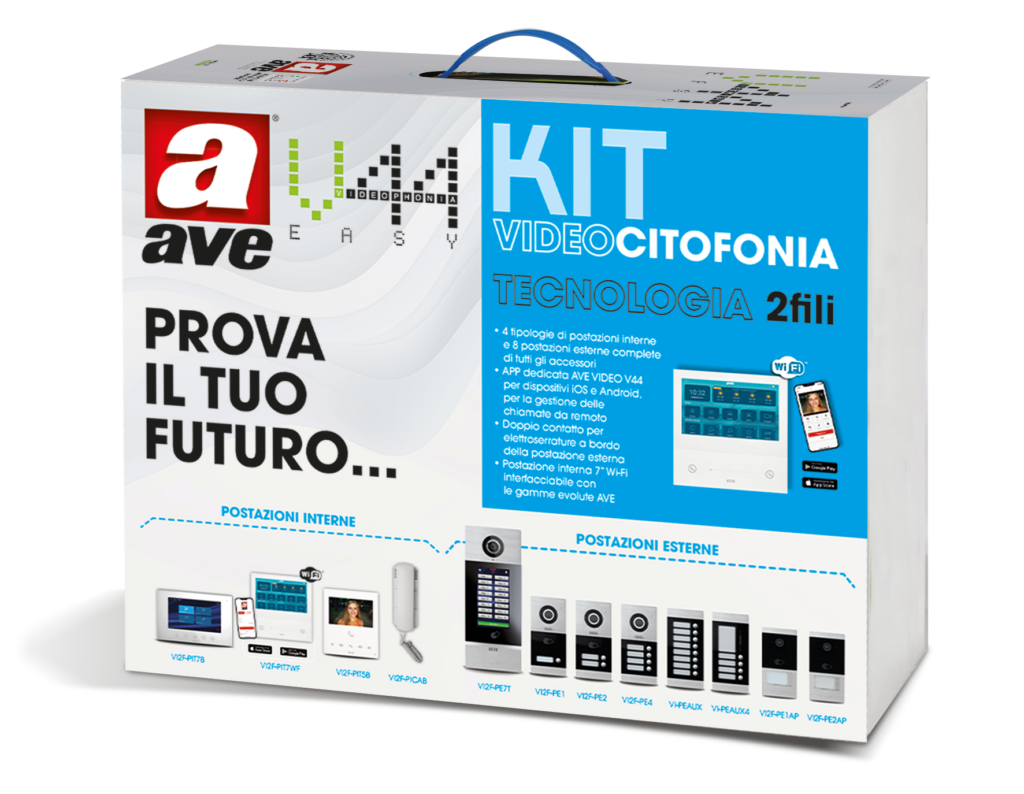

Expandable single-family KIT, 2-wire V44 EASY system. The kit contains: n.1 single call external station with integrated MIFARE reader (art. VI2F-PE1), n.1 white 7" touch screen monitor (art. VI2F-PIT7B), n.1 1.5A power supply (art. VI2F-ALI), 1 plastic box for wall mounting (art. VI-BOX3N) and a support frame for the external station (art. VI-BOX3C).
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379505050
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379505050
Length min.pck.: 430,00
Width min.pck.: 340,00
Height min.pck.: 150,00
Volume min.pck.: 21,93
Weight min.pck.: 2036,00
Quantity min. order: 1,00
Reference Metel: KIT 2W SINGLE-FAMILY 7" LCD
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​
Technical data ETIM

Technical data ETIM

With memory function: Si
Number of indoor stations: 1
Number of outdoor stations: 1
Colour indoor station: White
Hands free: Si
Installation technique: 2-wire
Internal communication: Si
With video: Si
With info sign: Si
Colour outdoor station: Grey
Screen diagonal: 178
Picture system: PAL
Hearing aid compatible: No
Screen diagonal (inch): 7
Manual adjustable camera: Si
Mounting method indoor station: Surface mounted (plaster)
Mounting method outdoor station: Flush mounted (plaster)
Material outdoor station: Other
Expandable to max. number of indoor stations: 4
Expandable to max. number of outdoor stations: 3
Can be connected to smartphone: No
Manuals and downloads
Request information
Last update: 20-06-2024

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
