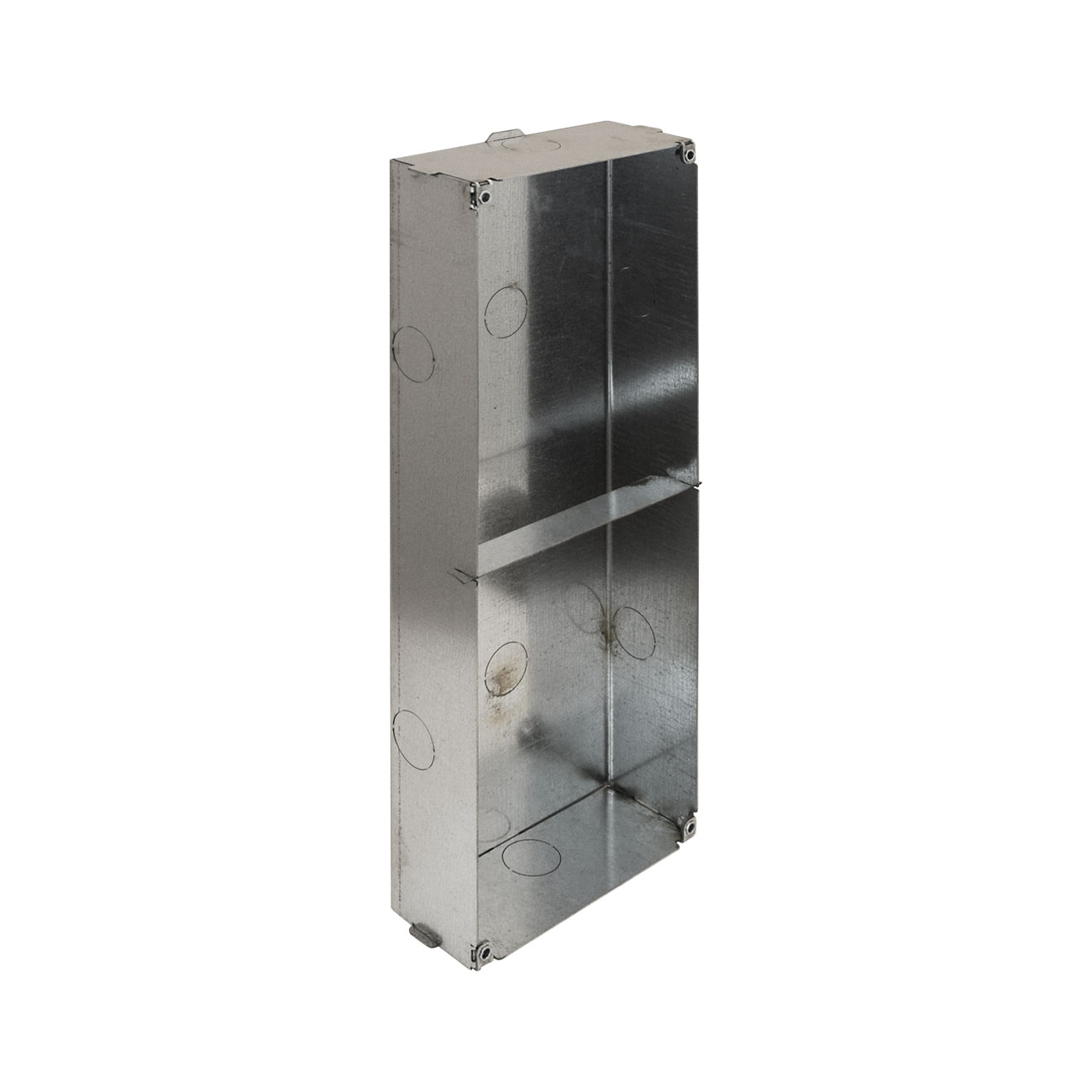

VI-BOX5

Flush mounting box for VIXX-PE7T

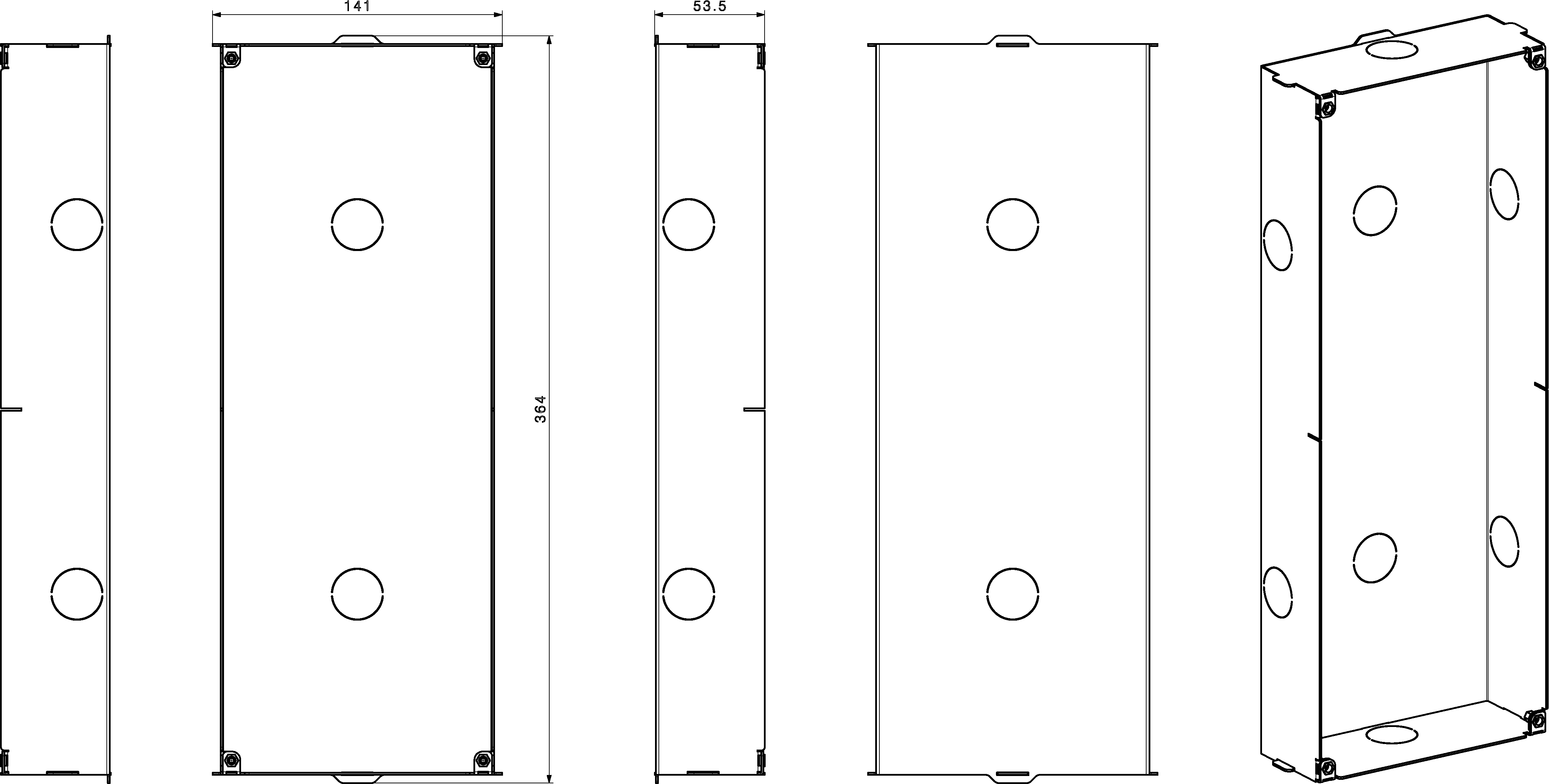

Flush-mounting box for Building model outdoor stations with integrated 7 "touch screen display. Article common to the devices of the V44 EASY and IP V44 SMART 2-wire outdoor units. Dimensions (LxHxP): 364x141x54 mm.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379161768
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379161768
Length min.pck.: 364,00
Width min.pck.: 141,00
Height min.pck.: 53,00
Volume min.pck.: 2,72
Weight min.pck.: 800,00
Quantity min. order: 1,00
Reference Metel: FLUSH MOUNTING BOX FOR VIXX-PE7T
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​
Technical data ETIM

Technical data ETIM

:
Mounting method: Flush mounted (plaster)
Colour: Grey
Width: 141
Model: Single
Halogen free: Si
Shape: Rectangular
Surface protection: Galvanic/electrolytic zinc plated
Diameter:
Equipped with: None
Construction type: Central conduit box
Inner depth: 52
Connectable: No
Length: 364
Sealable: No
Circuit integrity: None
Material: Stainless steel
Number of inlets: 4
Mounting switching equipment: Screwing
Cover attachment: Screwed
For number of electric fittings: 1
Luminaire hook mounting: No
With screening: No
With screws: Si
Air tight: No
Depth: 54 | -
Degree of protection (IP): Other
For tube diameter: Other
Inlet from the rear: Si
Pipe locking: No
Special application: None
Clamp position fixed: No
With partition panel: No
Number of poles of the clamp:
Nozzle: None
Provided with revolving ring: No
Housing feed-through by seal membrane: No
Housing feed-through by nozzle: No
Housing feed-through by step membrane: No
Pipe locking optional: No
Number of included spouts:
Cover model: Mounting cover
Housing feed-through by break-out opening: Si
Transparent cover: No
Degree of protection (NEMA): Other
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00495:
Pagina catalogo UK_00521:

DXF-Ingombro

ACCESSORIO PER VIDEOCITOFONI (DXF):
VI-BOX5 (PNG):
SOLIDO STL (STL):
SOLIDO STEP (STP):

Tagliando

VI-BOX5 - SCATOLA METALLICA DA INCASSO PER LE POSTAZIONI ESTERNE VIDEOCITOFONICHE:
Request information
Last update: 10-04-2025

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
