VIIP-PE7T

Outdoor unit 7" Touchscreen display - IP SYSTEM

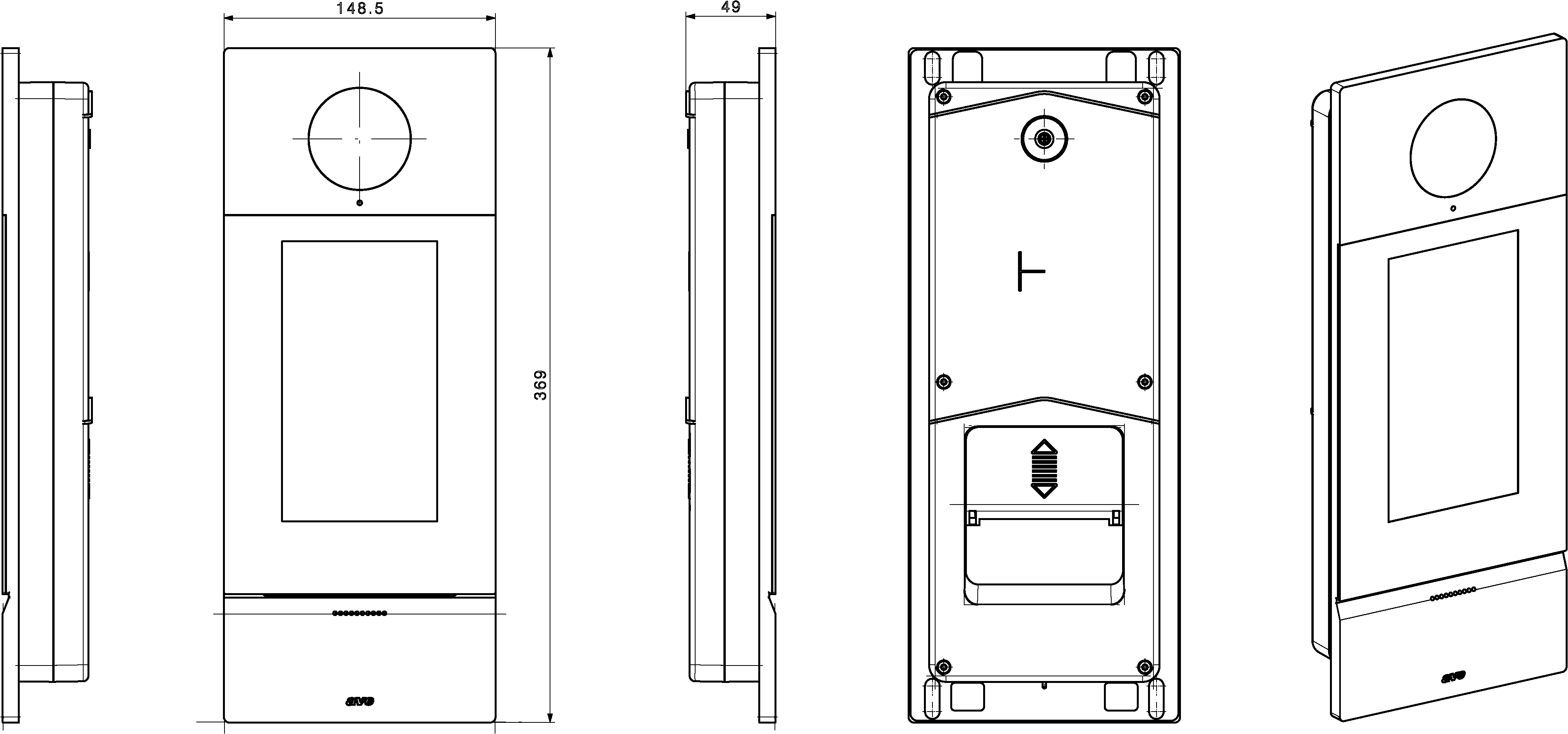

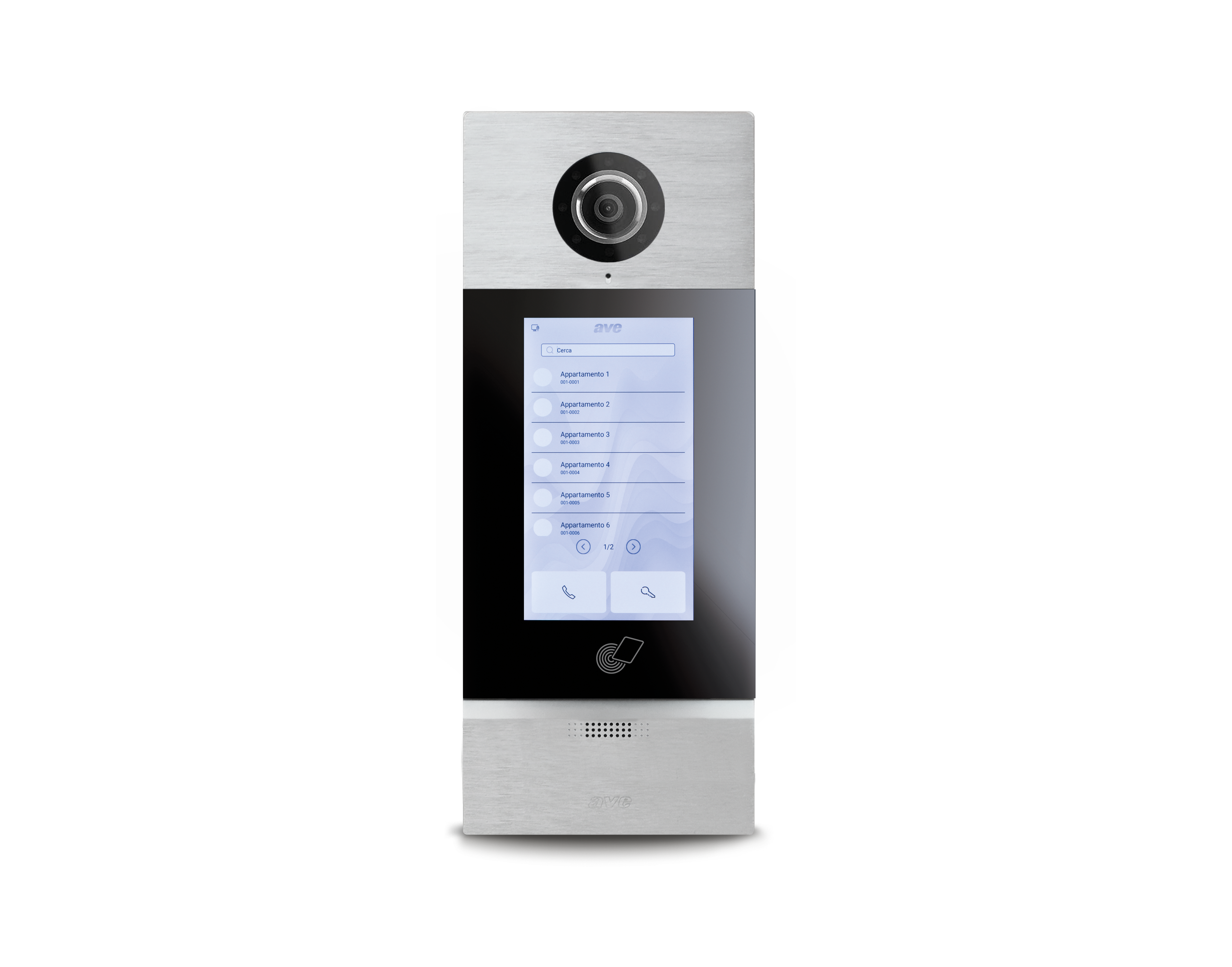

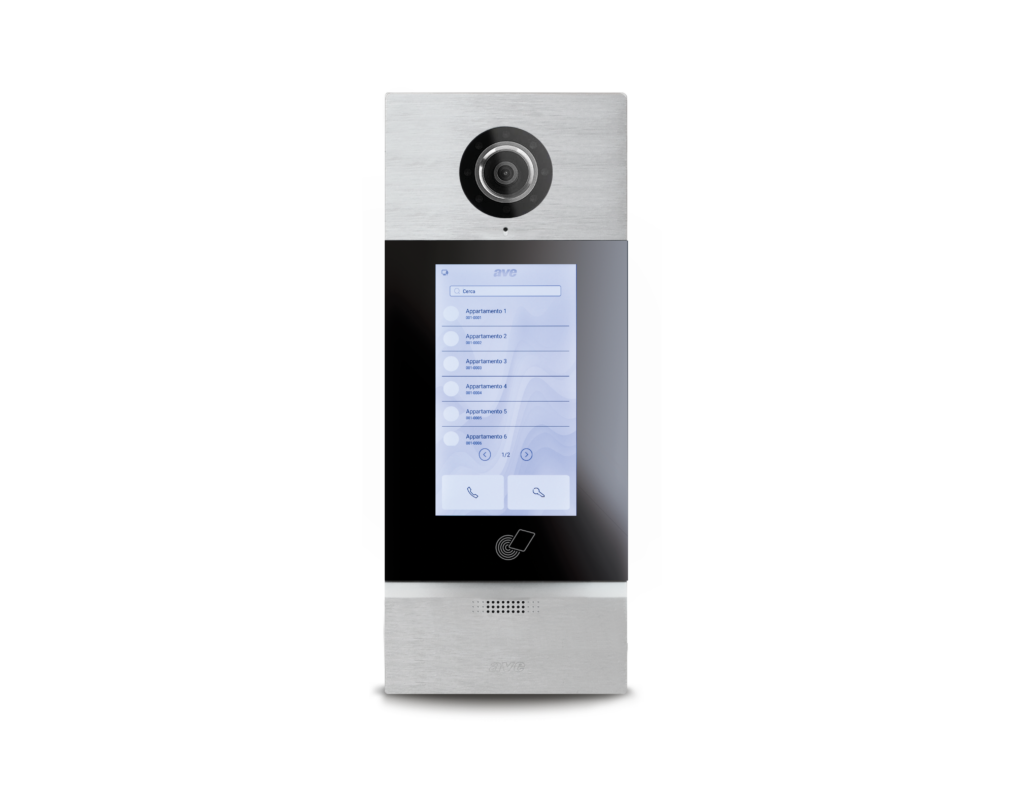

IP TECHNOLOGY. Multi-system audio-video external station mod. "Building". Front aesthetics made of bi-material: black glass and natural brushed aluminum. 7 "color touch screen display, adjustable camera, 2 outputs for the management of electric locks, integrated MIFARE card reader. Can be installed on the wall or built-in using special boxes and rain cover. Dimensions (LxHxD): 148,5x369x49 mm. V44 SMART SYSTEM.
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379160440
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379160440
Length min.pck.: 415,00
Width min.pck.: 165,00
Height min.pck.: 94,00
Volume min.pck.: 6,43
Weight min.pck.: 1492,50
Quantity min. order: 1,00
Reference Metel: OUTDOOR UNIT 7" TOUCHSCREEN-IP SYS
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​

Reference laws and directives

RAEE CAT. 5.18 RIPRODUZ.SUONI:
Dichiarazione UE 20230118_VIIP-PE7T:
RAEE CAT. 5.18 RIPRODUZ.SUONI
Technical data ETIM

Technical data ETIM

Mounting method: Flush mounted (plaster)
Colour: Silver
Width: 149
Height: 369
Depth: 49
Modular construction: No
With cover: No
Installation technique: Network technology
With info sign: No
Number of call buttons:
Material: Aluminium
Vandal proof: No
With camera: Si
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00517:

Manuals

Manuale installatore Sistema V44 SMART_Rev005:
System manual V44 SMART_Rev004_EN:

DXF-Ingombro

ACCESSORIO PER VIDEOCITOFONI (DXF):
VIIP-PE7T (PNG):
SOLIDO STL (STL):
SOLIDO STEP (STP):

Tagliando

VIIP-PE7T POSTAZIONE ESTERNA VIDEOCITOFONICA TOUCH 7â?? - GAMMA IP:

Software

VIIP-PE7T V2.8.5_20240930 - Software per postazione esterna IP VIIP-PE7T:
SFW-AVE-V44-CONFIG V3.4_20240514 - Software di programmazione Windows per IP e 2F:
Request information
Last update: 20-06-2024

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
