VNRD150EC

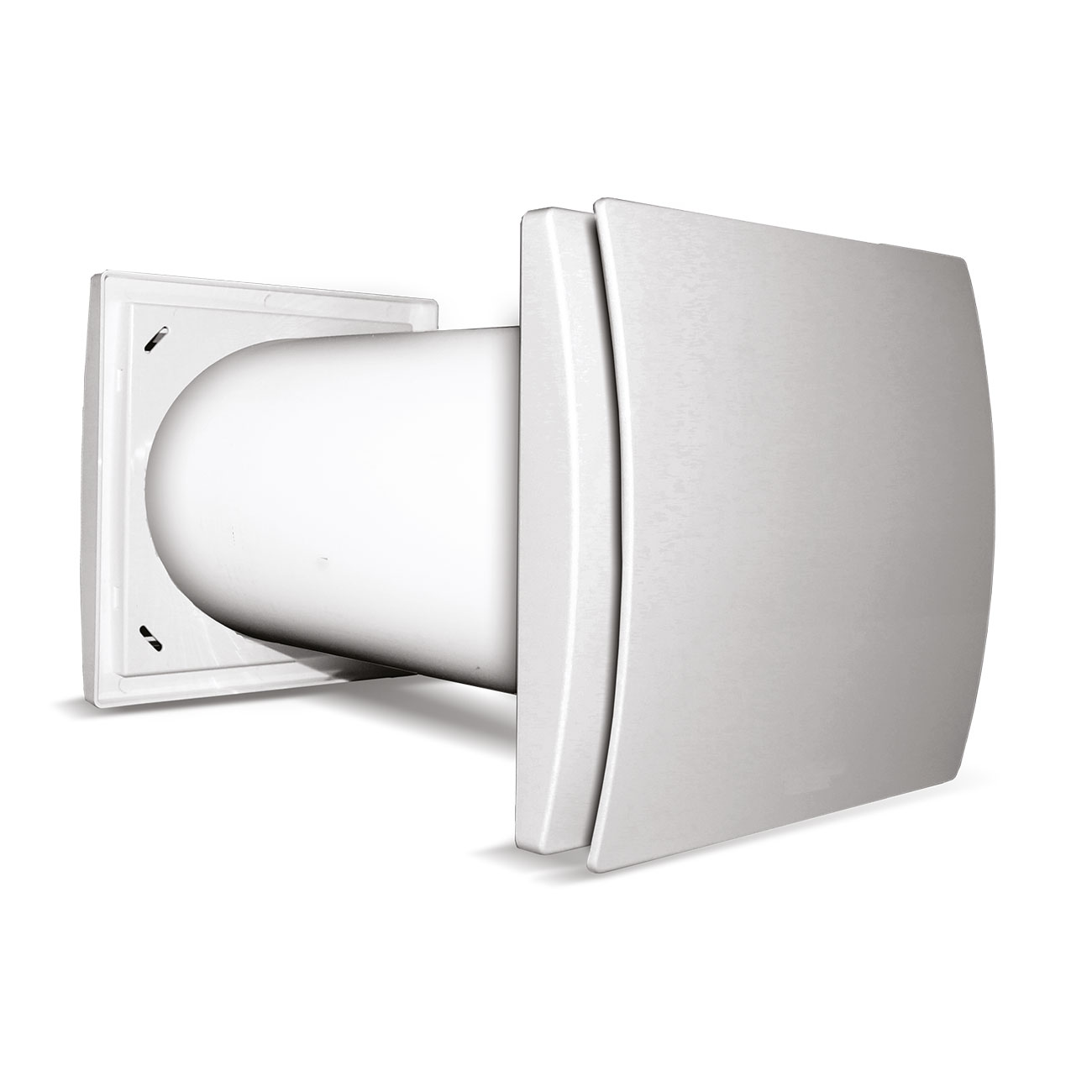

Decentralised heat recovery unit with single alternate flow - d150 - internal stylish front cover
Decentralised heat recovery unit with single alternate flow Ø158mm - internal stylish front cover - 82% thremal efficiency - EC brushless motor for energy saving, provided with ball bearing (long life) - maximum rate 60 m3/h - multi-speed, for continuous running - for installation in noble premises like bedrooms and living rooms - for areas up to 45 m2
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379100774
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379100774
Length min.pck.: 335,00
Width min.pck.: 390,00
Height min.pck.: 305,00
Volume min.pck.: 39,84
Weight min.pck.: 3590,00
Quantity min. order: 1,00
Reference Metel: RECOVERY UNIT SOLITAIR 150 EC 230V
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​
Technical data ETIM

Technical data ETIM

Colour: White
Width: 218
Model: Other
Depth: 560
Collapsible: No
Swivelling: No
Power consumption: 0.0038
Material: Plastic
Electrical connection: Terminals
Height: 218|218
Frequency: 50 Hz
Degree of protection (IP): IPX4
Connection voltage: 220|240
Suitable for wall mounting: Si
Air volume, unloaded: 60
Suitable for electronic control: Si
Suitable for transformer control: No
Impeller diameter: 158
With setting control: Si
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00675:

Manuals

UNITA VENTILANTI VMC DECENTRALIZZATA MISURE.:

Tagliando

MANUALE ISTRUZIONI VNRD100EC VNRD150EC:
Request information
Last update: 20-06-2024

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
