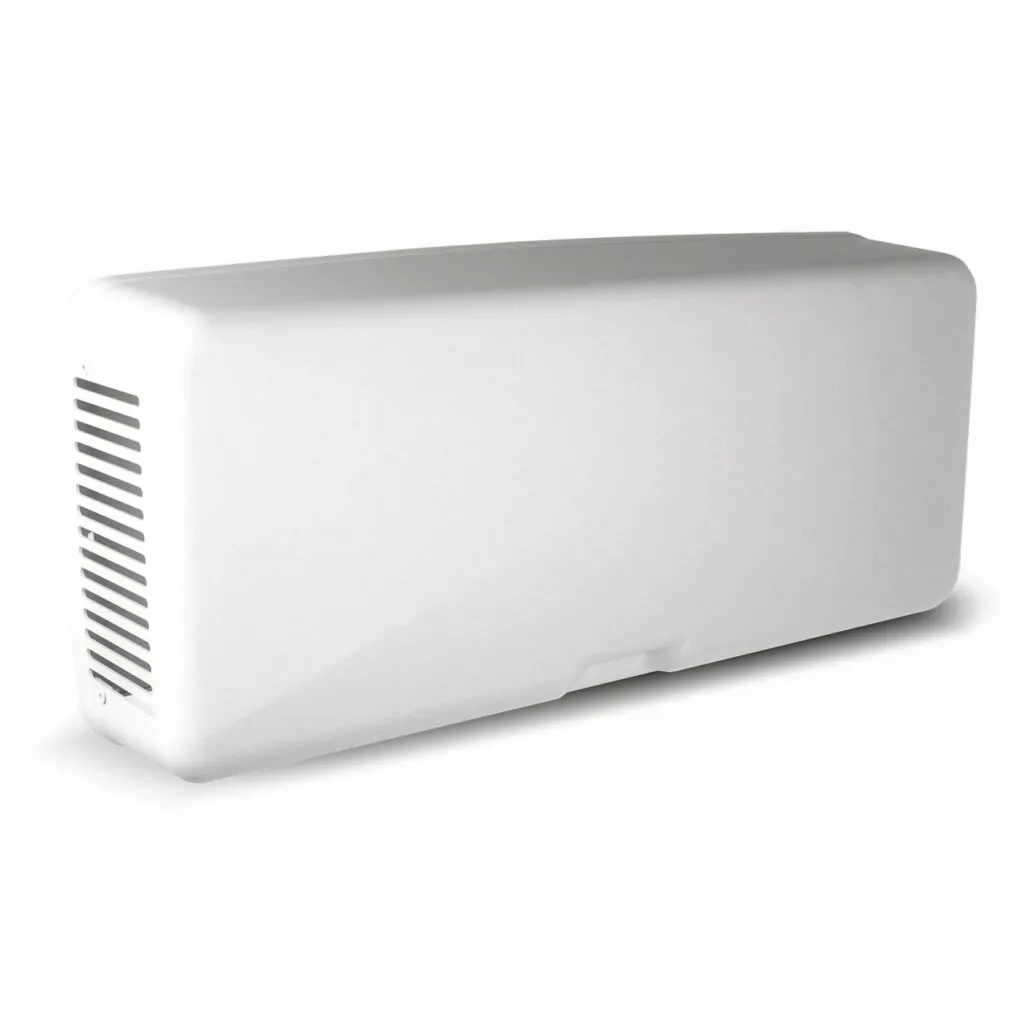

VNRP100EC

Decentralised ventilation unit with heat recovery for wall installation - up to 90% actual efficiency
Decentralised ventilation unit with heat recovery for wall installation - 82% thermal efficiency - EC brushless energy saving motors - maximum rate 97 m3/h - integrated control for speed adjustment - for areas up to 75 m2 (example school rooms, waiting rooms, apartments, etc.)
Commercial Features
Technical data ETIM
Manuals and downloads
Request information
Commercial Features

Commercial data

Code EAN13: 8008379090082
Standard packing: 1,00
Minimum packaging: 1,00
Code EAN13 min.pck.: 8008379090082
Length min.pck.: 1080,00
Width min.pck.: 240,00
Height min.pck.: 495,00
Volume min.pck.: 128,30
Weight min.pck.: 12500,00
Quantity min. order: 1,00
Reference Metel: RECOVERY UNIT SOLAIR100 EC 230V
Product status: In Stock

Safety instructions

Safety instructions:
Guarantees and complaints:​
Technical data ETIM

Technical data ETIM

Colour: White
Width: 1060
Model: Other
Depth: 213
Collapsible: No
Swivelling: No
Power consumption: 0.058
Material: Plastic
Electrical connection: Terminals
Height: 475|475
Frequency: 50 Hz
Degree of protection (IP):
Connection voltage: 220|240
Suitable for wall mounting: Si
Air volume, unloaded: 97
Suitable for electronic control: Si
Suitable for transformer control: No
With setting control: Si
Manuals and downloads

Commercial Catalog page

Pagina catalogo UK_00675:

Manuals

UNITA VENTILANTI VMC DECENTRALIZZATA MISURE.:

Tagliando

C0617rev06:
Request information
Last update: 20-06-2024

AVE reserves the right to modify the characteristics of the products shown at any time and without notice. The installation must be carried out by qualified personnel in compliance with the provisions governing the installation of electrical equipment in force in the country where the products are installed. For the conditions of use of the information on the product sheet see conditions of use.
